Search Top Quality Concrete Pump Bend Pipe (R275 90D 1000mm)

Short Description:

Port: Tianjin, China

Production Capacity: 500PCS/ Day
Payment Terms: L/C, T/T, D/P, Western Union, Paypal, Money Gram
Type: Pipe
Application: Concrete Pump
Certification: CE, ISO9001: 2000
Condition: New
Material: St52
Thickness: 6.0mm


Product Detail

Product Tags

Basic Info

Model NO.
pipe

Center Line Radius in./mm
16"/406mm,48"/1219mm, Customize

Degree of Angle
45deg/90deg, Customize

Length Deviation
+-1mm

Flange Tape
Sk HD Zx FM

Weld Tensile Strength
>360bar

Test Pressure
160bar

Color
Red Black White or Customized

Surface Coating
Baking Paint

Trademark
Ximai

Transport Package
Standard Export Package

Specification
DN50/2"

Origin
China

HS Code
841391

Product description

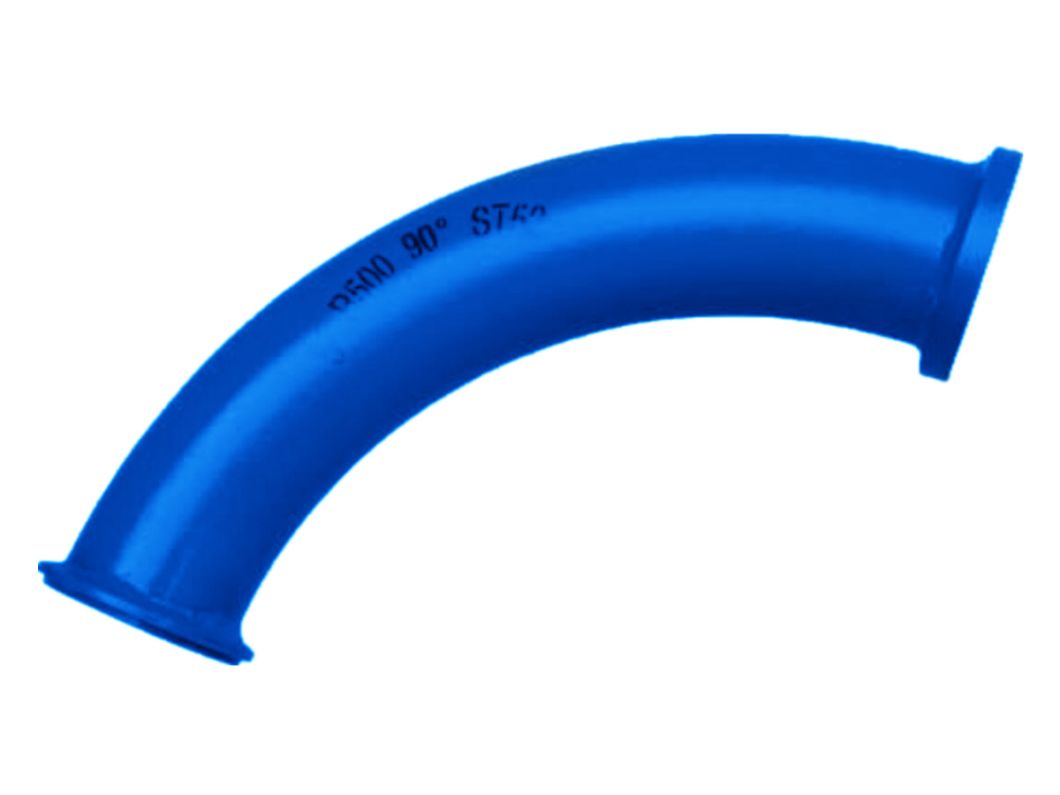

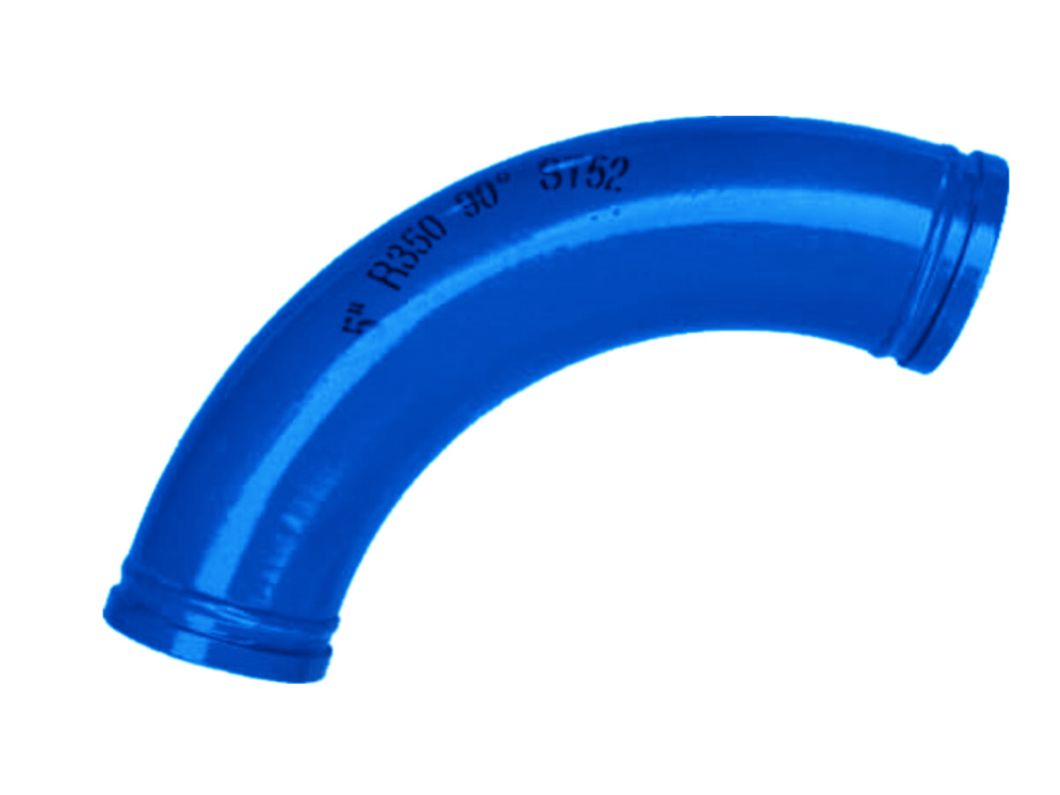

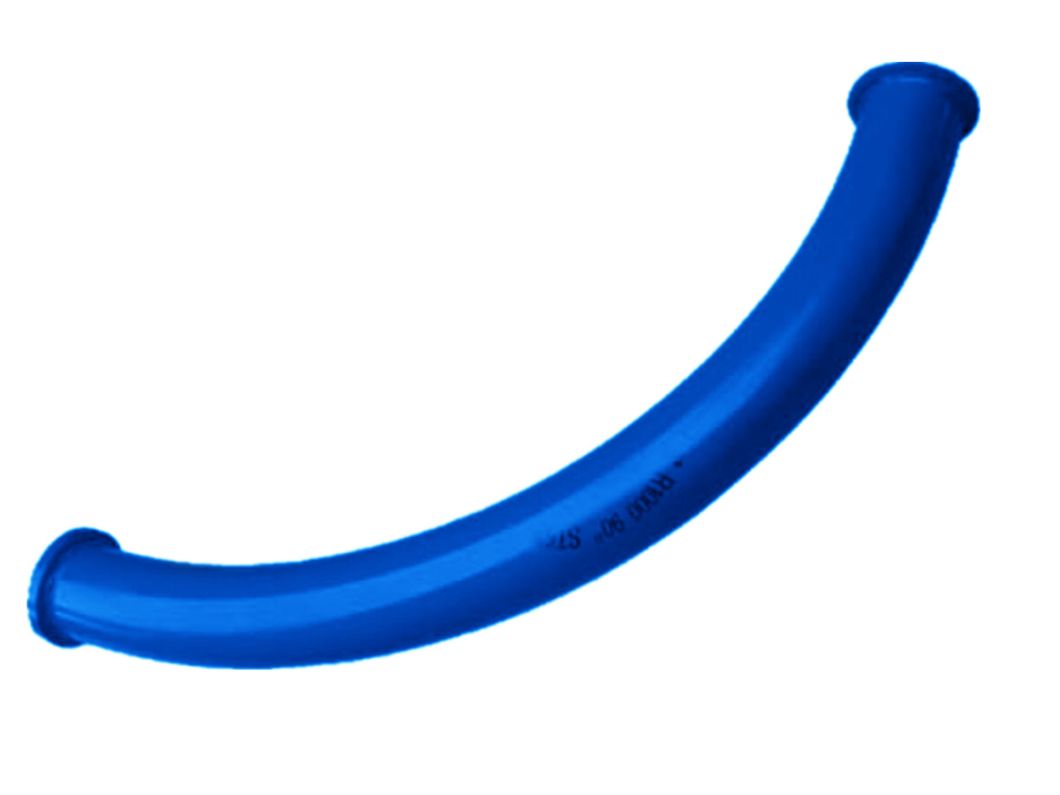

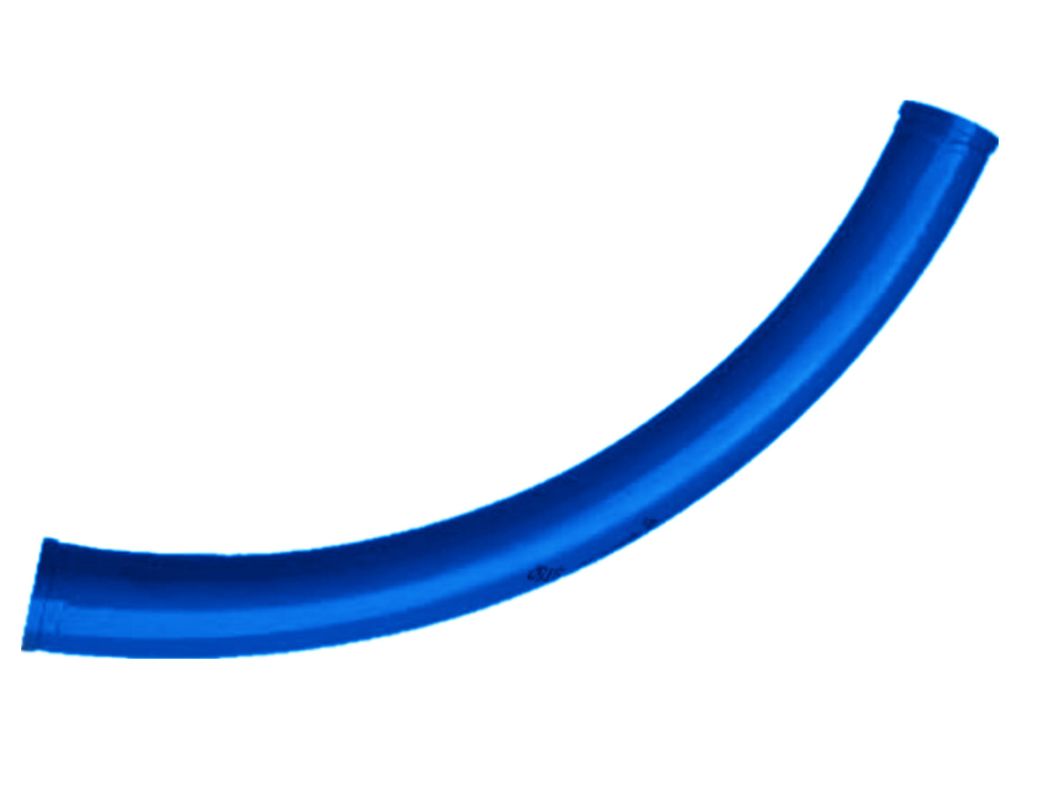

High quality ST52 concrete pump bendpipes
BENDPIPEDN50-2"
PartNO. ODIn./DIN CenterLineRadiusIn./mm DegreeofAngle Theoreticalweight(lbs./kg.)
BP501645 2.0/DN50 16/406 45 7.0/3.2
BP501690 2.0/DN50 16/406 90 11.7/5.3
BP504845 2.0/DN50 48/1219 45 14.1/6.4
BP504890 2.0/DN50 48/1219 90 27.5/12.5
Anytypeofelbowcanbecustomized
Anytypesofweldendsareavailable.METRIC(SK)WELDENDSHEAVYDUTYWELDENDSSCHWINGF/MWELDENDSPUTZMEISTERZ/XWELDENDS

1.We are a professional manufacturer of concrete pump pipes in China.Our products include concrete delivery pipes,elbows,reducers,couplings,rubber hoses,cleaning ball and so on.

2.Our products are top quality in china which have been used on SCHWING ,PM ,KYOKUTO ,SANY ,ZOOMLION ,CIFA,SINOTRUK(CNHTC),FOTON,XUGONG,CHUTIAN,HAINUO etc and have been recognized by them.

3.The HRC of it’s inner wall can reach 60~68 and the serving life of it can increase 3~5 times.

4.It is quenched and carried out carburizing chemical treatment on the inner wall.It has a high wear-resistant.

5.OEM available from us.Search Top Quality Concrete Pump Bend Pipe (R275 90D 1000mm)Search Top Quality Concrete Pump Bend Pipe (R275 90D 1000mm)Search Top Quality Concrete Pump Bend Pipe (R275 90D 1000mm)Search Top Quality Concrete Pump Bend Pipe (R275 90D 1000mm)Search Top Quality Concrete Pump Bend Pipe (R275 90D 1000mm)Search Top Quality Concrete Pump Bend Pipe (R275 90D 1000mm)Search Top Quality Concrete Pump Bend Pipe (R275 90D 1000mm)Search Top Quality Concrete Pump Bend Pipe (R275 90D 1000mm)
