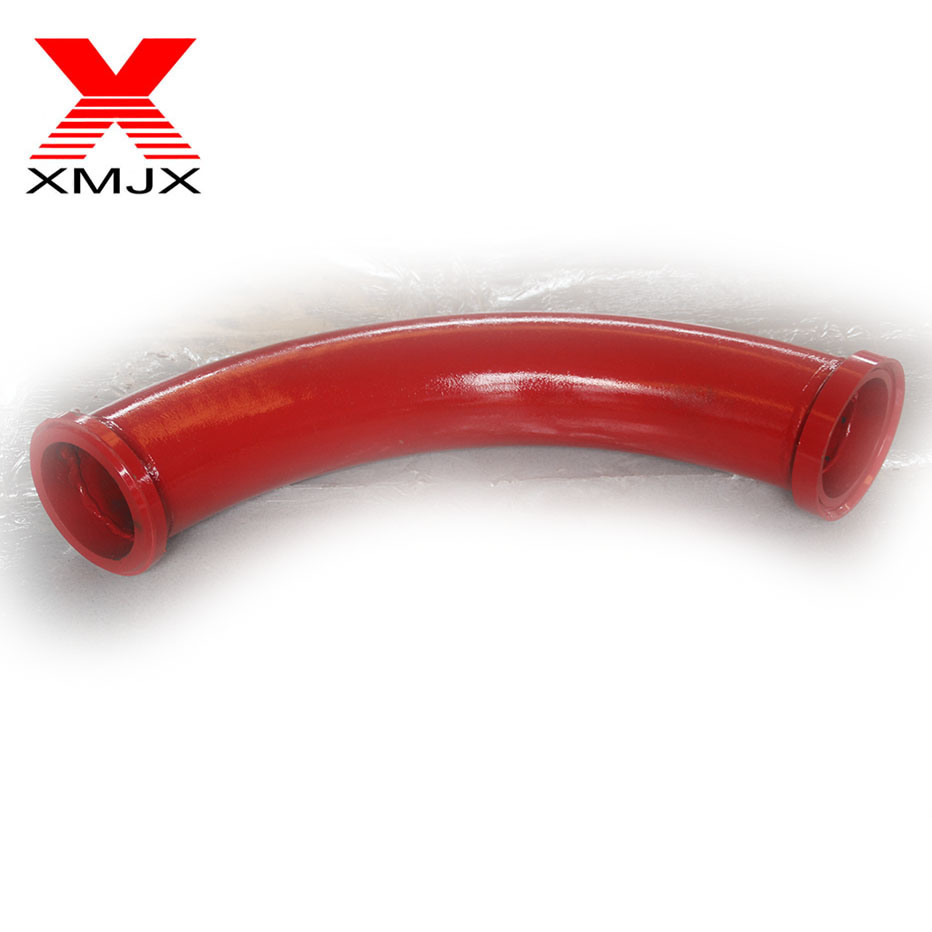

Concrete Pump Bend Pipe for Pm, Schwing Equipment

Short Description:

Port: Tianjin, China

Production Capacity: 500PCS/Day
Payment Terms: L/C, T/T
Temperature Classification: High Temperature Piping
MPa Classfication: High Pressure Piping
Material: St52
Standard: GB
Diameter: 273mm
Medium: Fluids With Solid Particle


Product Detail

Product Tags

Basic Info

Cross-Section Shape
Round

Connection Type
Flange

Color
Customized

Test Pressure
160bar

Weld Tensile
>360bar

Flange Type
Sk,HD,Zx/FM

Surface Coating
Baking Paint

Trademark
ximai

Transport Package
Wooden

Specification
ST52

Origin
China

HS Code
841340000

High quality staionary concrete pump bend pipes
CONCRETE PUMP BEND PIPEDN150-6"
Part NO. ODIn./DIN Center Line RadiusIn./mm Degree ofAngle Theoreticalweight(lbs./kg.)
BP1501445 6.0/ DN150 14/356 45 25.5/11.6
BP1501490 6.0/ DN150 14/356 90 36.3/16.5
BP1501845 6.0/ DN150 18/457 45 27/12.3
BP1501890 6.0/ DN150 18/457 90 45/20.5
BP1503245 6.0/ DN150 24/610 45 31.7/16.4
BP1503290 6.0/ DN150 24/610 90 50.6/23
BP1503245 6.0/ DN150 36/914 45 47/21.7
BP1503290 6.0/ DN150 36/914 90 93.5/42.5
BP1504845 6.0/ DN150 48/1219 45 60/27.2
BP1504890 6.0/ DN150 48/1219 90 107/48.5
Any type of elbow can be customized
Any types of weld ends are available.METRIC (SK) WELD ENDSHEAVY DUTY WELD ENDSSCHWING F/M WELD ENDSPUTZMEISTER Z/X WELD ENDS

AdvantagesThe high quality structure ensures high abrasion resistance and toughnessManganese alloy iron casting enables the liner highly wear proof and reduce pressureSeamless welding enables the the outer layer hard to explodeLight weight improves vehicle efficiency, highly reduces labor and cost and the time for replacementDesigned structure, material and process realize its 3-5 times service life of common productsto extend the service life of other pipe fittingEasy to use and handleOur service………………………………………………………………………………………………………………………………………..

High Quality:ISO9001, CE, CO certifications etc. All components adopt the qualified materials.100% quality check and durable testing for every product before shipment.
Competitive Price
Large scale production and well trained workers reduce cost greatly,Ximai use the Bottom Price to make you become the most competitive seller in your region.One-Stop Shopping
Our major is concrete pump pipe and forged coupling, we also have several partners,supplying related products so that can meet customers’ needs.Short Lead Time
We have power production capacity, produce 1500 sets couplings and 500pcs pipes every day.We can have your urgent orders ready in short time.Standard export package
Our package is in conformity with export requirements.We ensure it’s very safe and firm in the course of shipping.Customer Service
Top sales with professional skills make you never feel difficult to communicate with afactory,all Ximai staff will stand by you, reply your inquiry and solve your problem, no matter pre-sales or after-sales.

Production display………………………………………………………………………………………………………………………….Concrete Pump Bend Pipe for Trailer PumpConcrete Pump Bend Pipe for Trailer PumpConcrete Pump Bend Pipe for Trailer PumpProduct process…………………………………………………………………………………………………………………………………………Concrete Pump Bend Pipe for Trailer PumpProduct test……………………………………………………………………………………………………………………………………….Concrete Pump Bend Pipe for Trailer PumpConcrete Pump Bend Pipe for Trailer Pump

Quality assurance: We hereby confirm to undertake all the losses which caused by our product quality.

Packaging&Shipping……………………………………………………………………………………………………………………………….Concrete Pump Bend Pipe for Trailer PumpConcrete Pump Bend Pipe for Trailer PumpConcrete Pump Bend Pipe for Trailer PumpConcrete Pump Bend Pipe for Pm, Schwing Equipment
