Sany Pm Schwing Hopper End Elbow

Short Description:

Port: Tianjin, China

Production Capacity: 500PCS/Per Day
Payment Terms: L/C, T/T, D/P, Western Union, Paypal, Money Gram
Type: Concrete Pump Pipe Hinge Chain
Application: Concrete Pump
Certification: CE, ISO9001: 2000
Condition: New
Material: 40crmo Alloy Gzmn13-4
Hardeness: up to 68HRC


Product Detail

Product Tags

Basic Info

Model NO.
Hopper and Elbow

Pressure
360bar

Theoretical Weight(Lbs/Kg)
48.5~52.5

Length Deviation
<+-1mm

Angular Deviation
<1 Degree

Flange Section
Precision Machining

Color
Any

Surface Coating
Baking Paint

Manufacture Process
Precision Casting

Pressure Detection Rate
100%

Trademark
Ximai

Transport Package
Standard Export Package

Specification
DN180 R460/398 90degree

Origin
China

HS Code
841391

Product description…………………………………………………………………………………………………………………………………….
High quality concrete pump hinge chain elbow

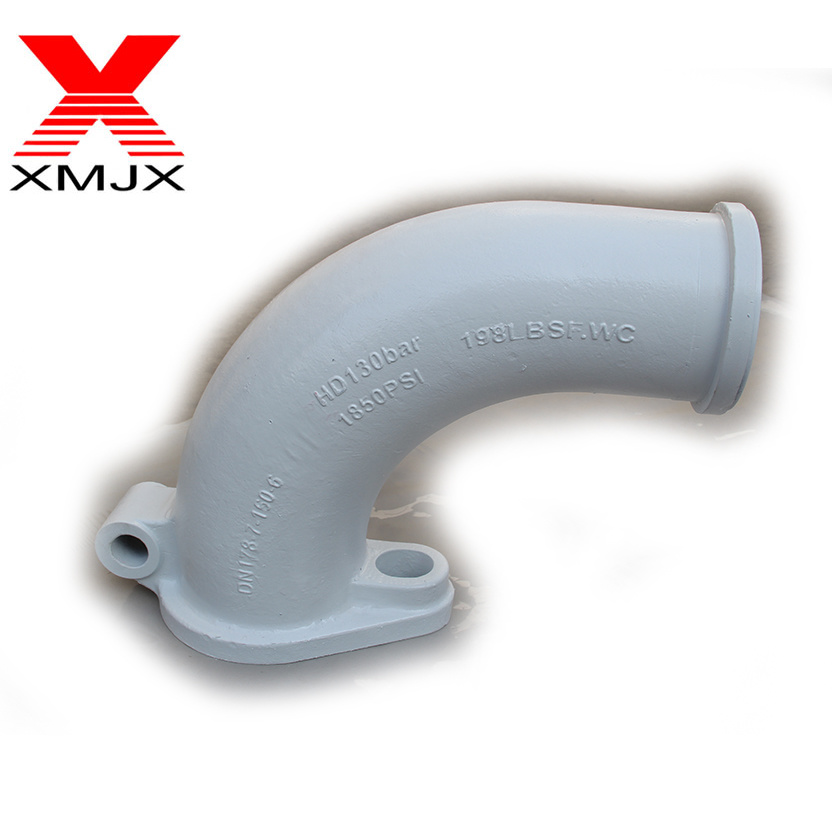

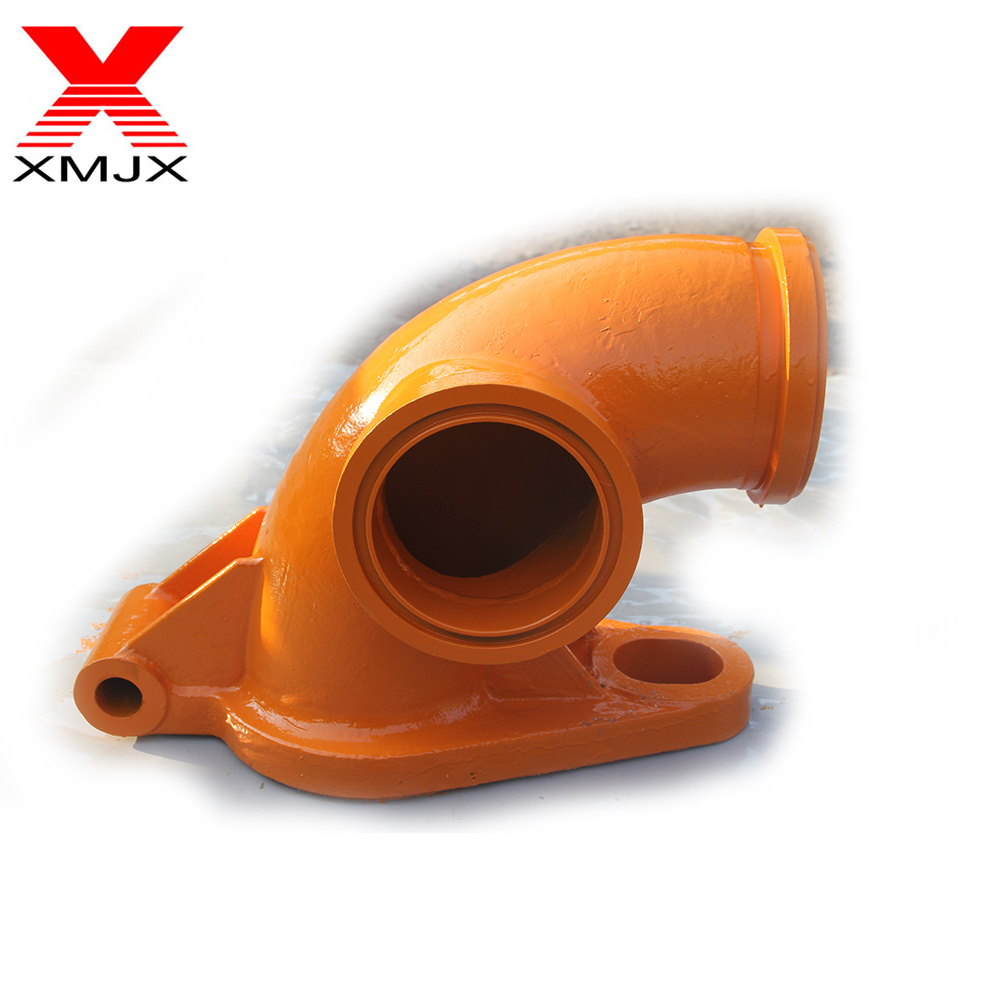

SANY hinged elbow & outlet elbow
Part NO. Description Dimension Material Theoreticalweight(lbs./kg.) Pressure
XM00568EB338 SANY hinged elbow DN175 90° 40CrMo 52.5 360bar
XM00568EB339 SANY hinged elbow DN150 90° 40CrMo 42.2 320bar
XM00568EB340 SANY outlet elbow DN175 90° 40CrMo 41.3 360bar
XM00568EB341 SANY outlet elbow DN150 R400 90° 40CrMo 37.2 320bar
XM00568EB342 SANY outlet elbow DN150 R500 90° 40CrMo 320bar
XM00568EB343 SANY outlet elbow DN150 R400 30° 40CrMo 27.9 320bar
XM00568EB344 SANY outlet elbow DN150 R400 30° 40CrMo 30.9 320bar
XM00568EB345 SANY outlet elbow DN150 R400 30°+500 40CrMo 48.5 320bar

Advantages

The high qualitystructure ensures high abrasion resistance and toughness

Manganese alloy iron casting enables the liner highly wear proof and reduce pressure

Seamless welding enables the the outer layerhard to explode

Light weight improves vehicle efficiency, highly reduces labor and cost and the time for replacement

Designed structure, material and process realize its 3-5 times service life of common products

to extend the service life of other pipe fitting

Easy to use and handle

Our service………………………………………………………………………………………………………………………………………..

High Quality:ISO9001, CE, CO certifications etc. All components adopt the qualified materials.100% quality check and durable testing for every product before shipment.
Competitive Price
Large scale production and well trained workers reduce cost greatly,Ximai use the Bottom Price to make you become the most competitive seller in your region.One-Stop Shopping
Our major is concrete pump pipe and forged coupling, we also have several partners,supplying related products so that can meet customers’ needs.Short Lead Time
We have power production capacity, produce 1500 sets couplings and 500pcs pipes every day.We can have your urgent orders ready in short time.Standard export package
Our package is in conformity with export requirements.We ensure it’s very safe and firm in the course of shipping.Customer Service
Top sales with professional skills make you never feel difficult to communicate with a factory,all Ximaistaff will stand by you, reply your inquiry and solve your problem, no matter pre-sales or after-sales.

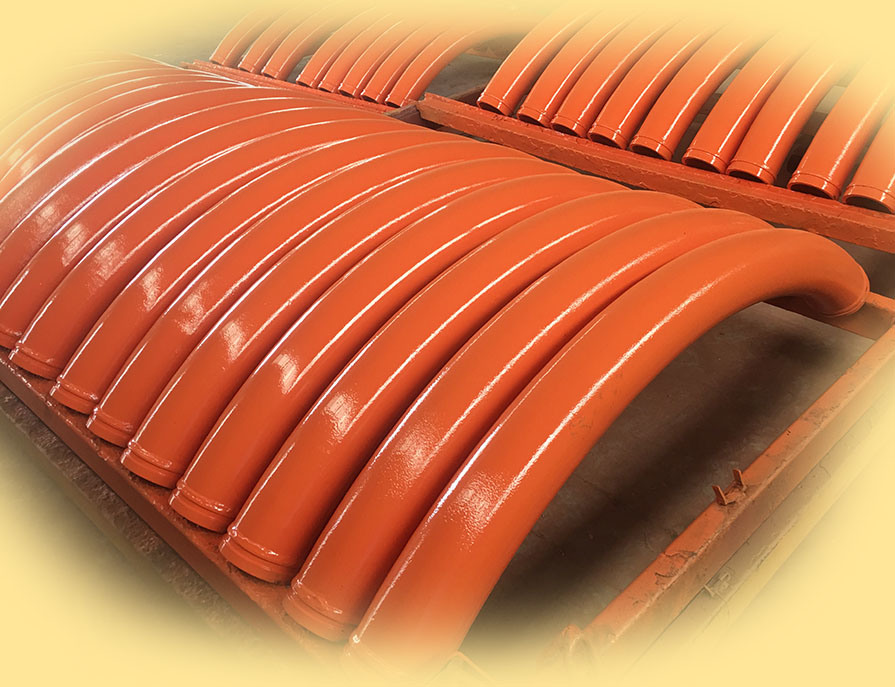

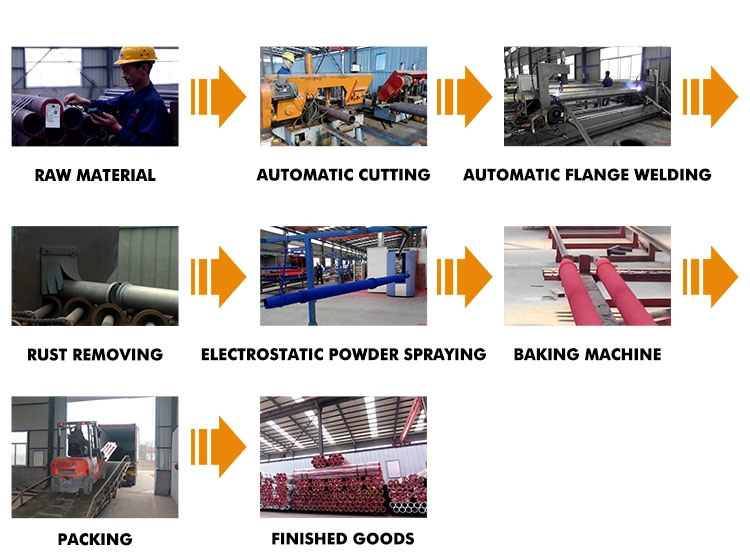

Production display………………………………………………………………………………………………………………………….Sany Pm Schwing Hopper End ElbowSany Pm Schwing Hopper End ElbowProduct process…………………………………………………………………………………………………………………………………………

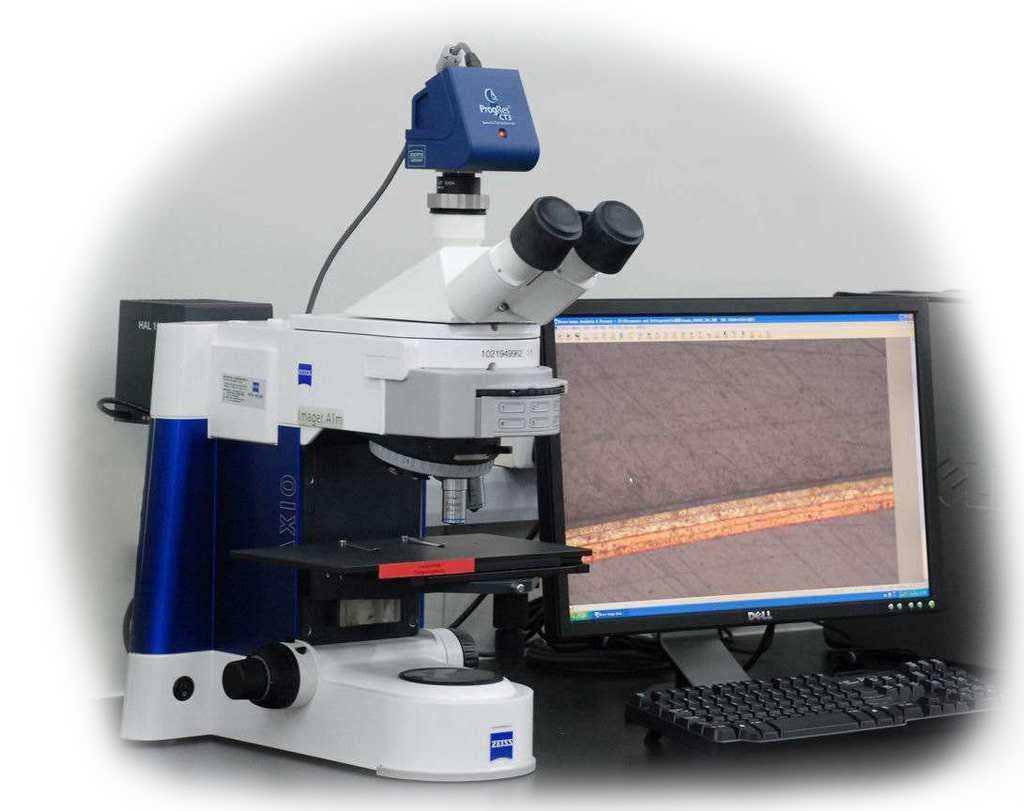

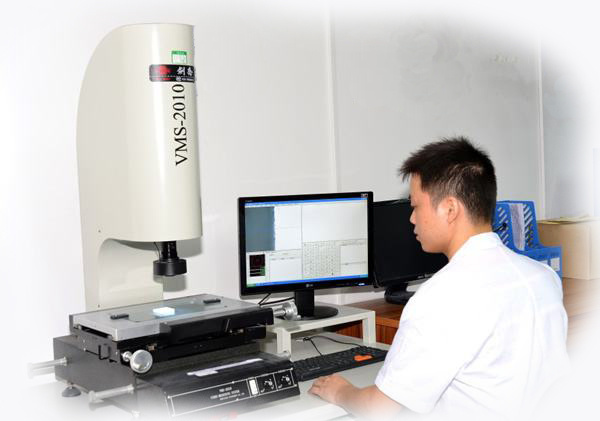

Sany Pm Schwing Hopper End ElbowProduct test……………………………………………………………………………………………………………………………………….Sany Pm Schwing Hopper End ElbowSany Pm Schwing Hopper End Elbow

Quality assurance: We hereby confirm to undertake all the losses which caused by our product quality.

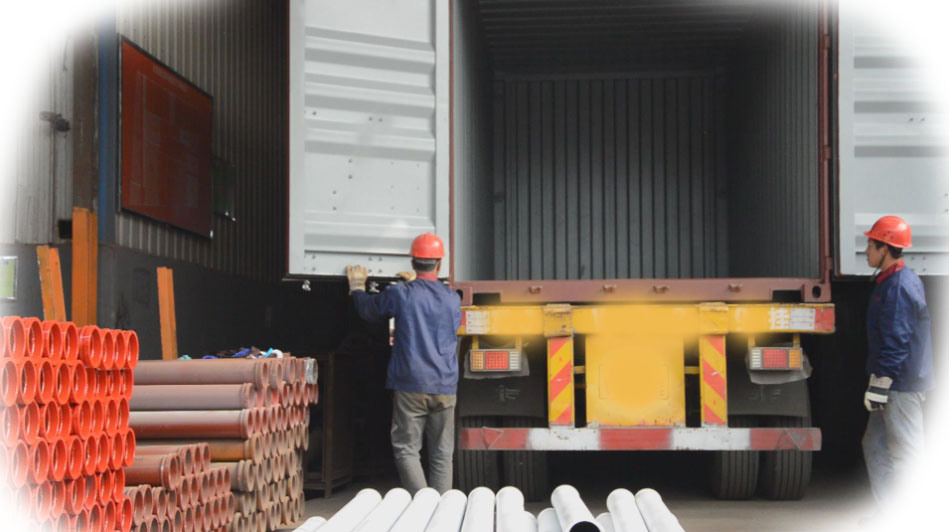

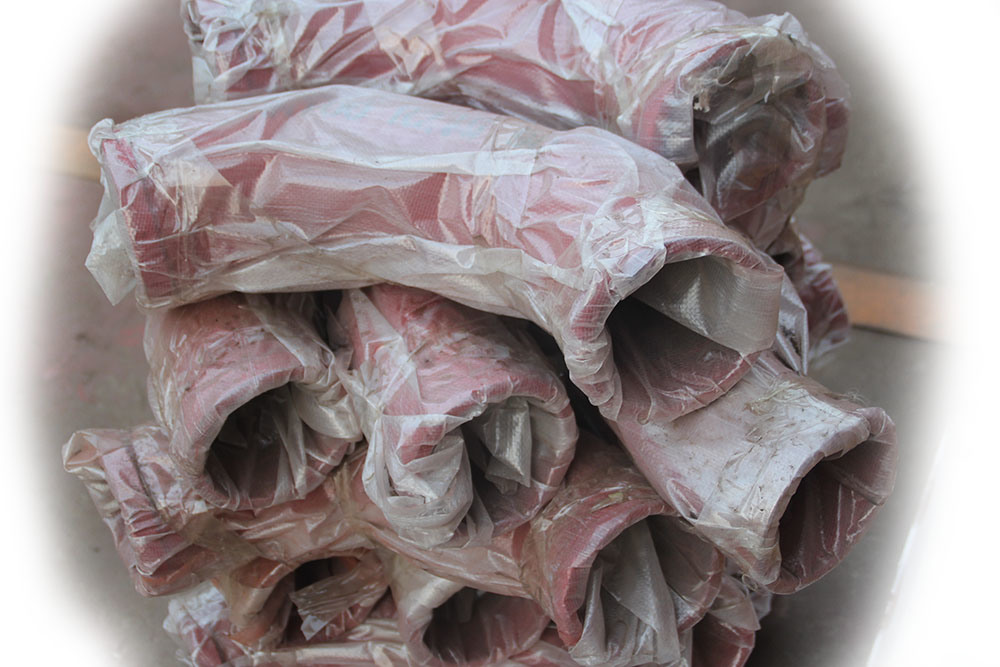

Packaging&Shipping……………………………………………………………………………………………………………………………….Sany Pm Schwing Hopper End ElbowSany Pm Schwing Hopper End ElbowSany Pm Schwing Hopper End ElbowContact us……………………………………………………………………………………………………………………………………………..Sany Pm Schwing Hopper End ElbowSany Pm Schwing Hopper End ElbowFAQ……………………………………………………………………………………………………………………………………………………………….

Q: Are you trading company or manufacturer ?

A: We are a factory.

Q: How long is your delivery time?

A: Generally it is 5-10 days if the goods are in stock. or it is 15-20 days if the goods are not in stock, it is according to your quantity.

Q: Do you provide samples ? is it free or extra ?

A: Yes, we could offer the sample for free charge but the cost of freight by your side.
