Concrete Pump Spare Parts Line Pump Parts Pipe From China

Short Description:

Port: Tianjin, China
Production Capacity: 500PCS Per Day
Payment Terms: L/C, T/T, D/P, Western Union, Paypal
Type: Pipe
Application: Concrete Delivery
Certification: CE, ISO9001: 2000
Condition: New
Material: St52-25
Thickness(mm): 3.0-5.0


Product Detail

Product Tags

Basic Info

Model NO.
DN65-2.5″
Length(mm)
1000~6000 or Customized
Flange Tape
with Sk, HD, Zx, FM Flange Ends
Test Pressure
160~250bar
Surface Coating
Baking Paint
Length Deviation
+-1mm
Hardeness
up to 68HRC
Theoretical Weight(Lbs/Kg)
12/5.4
Weld Tensile Strength
>480bar
Color
Red Black White or Customized
Trademark
Ximai
Transport Package
Standard Export Package
Specification
LINE PUMP PIPE DN65 -2.5″
Origin
Contact Us:  sales@ximai.group
Cell phone / whatsapp: +8617733839988
China
ST52-25
PRODUCT FEATURES

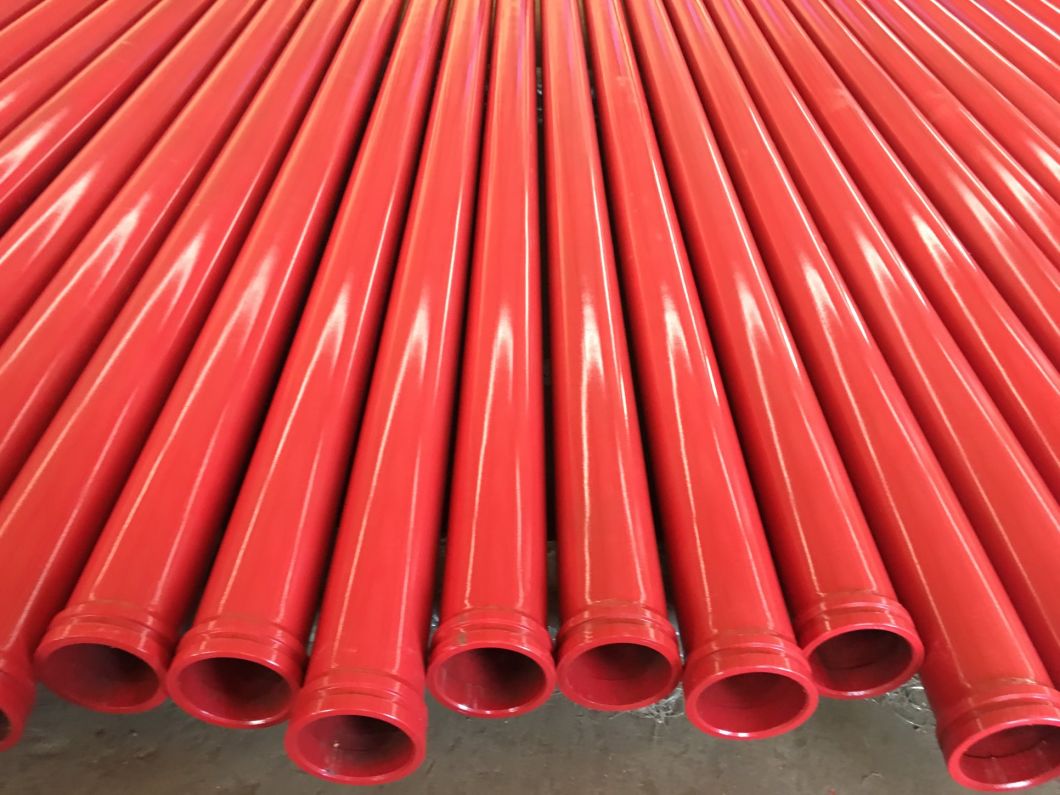

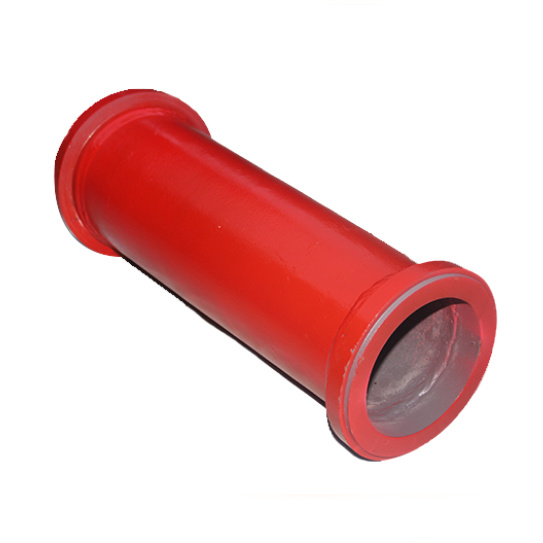

LINE PUMP PIPE DN65 -2.5″ With SK, HD, ZX, FM Flange Ends
Part Number Thickness(mm) Theoretical weight(lbs./kg.)/meter LengthDeviation TestPressure WeldTensileStrength SurfaceCoating
ST52-2530 3.0 12/5.4 ±1mm 160bar >360bar Painting
ST52-2535 3.5 13.8/6.3 ±1mm 180bar >360bar Painting
ST52-2540 4.0 15.6/7.1 ±1mm 160bar >480bar Painting
ST52-2545 4.5 17.5/7.9 ±1mm 180bar >480bar Painting
ST52-2550 5.0 19.3/8.8 ±1mm 250bar >480bar Painting
Length=1000mmLength=2000mmLength=3000mmLength=3048mm(Length=120 inch, Length=10 feet)Length=4500mmLength=6000mm……..Any length and thickness can be customized.
Any types of weld ends are available.METRIC (SK) WELD ENDSHEAVY DUTY WELD ENDSSCHWING F/M WELD ENDSPUTZMEISTER Z/X WELD ENDS
Our service………………………………………………………………………………….
High Quality:ISO9001, CE, CO certifications etc. All components adopt the qualified materials.100% quality check and durable testing for every product before shipment.Competitive PriceLarge scale production and well trained workers reduce cost greatly,Ximai use the Bottom Price to make you become the most competitive seller in your region.One-Stop ShoppingOur major is concrete pump pipe and forged coupling, we also have several partners,supplying related products so that can meet customers’ needs.Short Lead TimeWe have power production capacity, produce 1500 sets couplings and 500pcs pipes every day.We can have your urgent orders ready in short time.Standard export packageOur package is in conformity with export requirements.We ensure it’s very safe and firm in the course of shipping.Customer ServiceTop sales with professional skills make you never feel difficult to communicate with a factory,all Ximaistaff will stand by you, reply your inquiry and solve your problem, no matter pre-sales or after-sales.

Concrete Pump Spare Parts Line Pump Parts Pipe From ChinaConcrete Pump Spare Parts Line Pump Parts Pipe From ChinaConcrete Pump Spare Parts Line Pump Parts Pipe From China
