Competitive Price with Top Quality on Concrete Pump Pipe

Short Description:

Port: Tianjin, China
Production Capacity: 500PCS/Per Day
Payment Terms: L/C, T/T, D/P, Western Union, Paypal, Money Gram
Type: Pipe
Application: Concrete Pump
Certification: CE, ISO9001: 2000
Condition: New
Material: M55 Q235
Thickness(mm): 4~12


Product Detail

Product Tags

Basic Info

Length Deviation
+-1mm
Length(mm)
1000~6000 or Customized
Hardeness
up to 68HRC
Hardened Process
UHF Quenching (400kHz)
Theoretical Weight(Lbs/Kg)
28/12.7
Flange Tape
Sk148 HD157 Zx175 FM175
Weld Tensile Strength
>480bar
Test Pressure
160~360bar
Color
Red Black White or Customized
Surface Coating
Baking Paint
Trademark
Ximai
Transport Package
Standard Export Package
Specification
M55 LINE PUMP PIPE DN125 -5″
Origin
China
HS Code
841391
Product description…………………………………………………………………………………………………………………………………….

Factory directly supply High quality line pump pipes

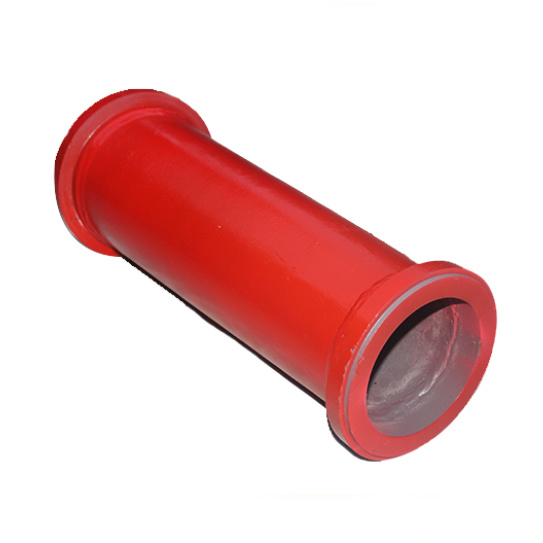

M55 LINE PUMP PIPE DN125 -5″ With SK, HD, ZX, FM Flange Ends
Part Number Thickness(mm) Theoretical weight(lbs./kg.)/meter LengthDeviation TestPressure WeldTensileStrength SurfaceCoating
M55-540 4.0 28/12.7 ±1mm 160bar >480bar Painting
M55-545 4.5 31.5/14.3 ±1mm 180bar >480bar Painting
M55-550 5.0 35/15.8 ±1mm 250bar >480bar Painting
M55-560 6.0 44/19.8 ±1mm 280bar >480bar Painting
M55-565 6.5 47/21.4 ±1mm 280bar >480bar Painting
M55-571 7.1 51/23.3 ±1mm 360bar >480bar Painting
M55-591 9.1 65/29.4 ±1mm 360bar >480bar Painting
M55-5100 10.0 70/32 ±1mm 360bar >480bar Painting
M55-5120 12.0 84/38 ±1mm 360bar - Primer
Length=1000mmLength=2000mmLength=3000mmLength=3048mm(Length=120 inch, Length=10 feet)Length=4500mmLength=6000mm……..Any length and thickness can be customized.

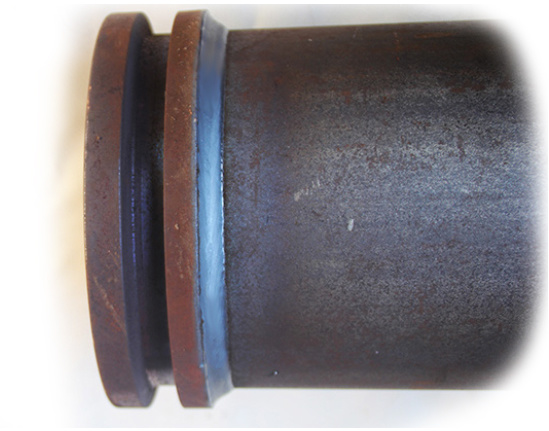

Any types of weld ends are available.METRIC (SK) WELD ENDSHEAVY DUTY WELD ENDSSCHWING F/M WELD ENDSPUTZMEISTER Z/X WELD ENDS

Our service………………………………………………………………………………………………………………………………………..

High Quality:ISO9001, CE, CO certifications etc. All components adopt the qualified materials.100% quality check and durable testing for every product before shipment.
Competitive Price
Large scale production and well trained workers reduce cost greatly,Ximai use the Bottom Price to make you become the most competitive seller in your region.One-Stop Shopping
Our major is concrete pump pipe and forged coupling, we also have several partners,supplying related products so that can meet customers’ needs.Short Lead Time
We have power production capacity, produce 1500 sets couplings and 500pcs pipes every day.We can have your urgent orders ready in short time.Standard export package
Our package is in conformity with export requirements.We ensure it’s very safe and firm in the course of shipping.Customer Service
Top sales with professional skills make you never feel difficult to communicate with a factory,all Ximaistaff will stand by you, reply your inquiry and solve your problem, no matter pre-sales or after-sales.

Production display………………………………………………………………………………………………………………………….Competitive Price with Top Quality on Concrete Pump PipeCompetitive Price with Top Quality on Concrete Pump PipeCompetitive Price with Top Quality on Concrete Pump PipeCompetitive Price with Top Quality on Concrete Pump Pipe

Product process………………………………………………………………………………………………………………………………………… Competitive Price with Top Quality on Concrete Pump PipeProduct test……………………………………………………………………………………………………………………………………….Competitive Price with Top Quality on Concrete Pump Pipe

Quality assurance: We hereby confirm to undertake all the losses which caused by our product quality.

Packaging&Shipping……………………………………………………………………………………………………………………………….Competitive Price with Top Quality on Concrete Pump PipeCompetitive Price with Top Quality on Concrete Pump PipeContact us……………………………………………………………………………………………………………………………………………..



Contact Us:  sales@ximai.group



Cell phone / whatsapp: +8617733839988

FAQ……………………………………………………………………………………………………………………………………………………………….

Q: Are you trading company or manufacturer ?

A: We are a factory.

Q: How long is your delivery time?

A: Generally it is 5-10 days if the goods are in stock. or it is 15-20 days if the goods are not in stock, it is according to your quantity.

Q: Do you provide samples ? is it free or extra ?

A: Yes, we could offer the sample for free charge but the cost of freight by your side.
