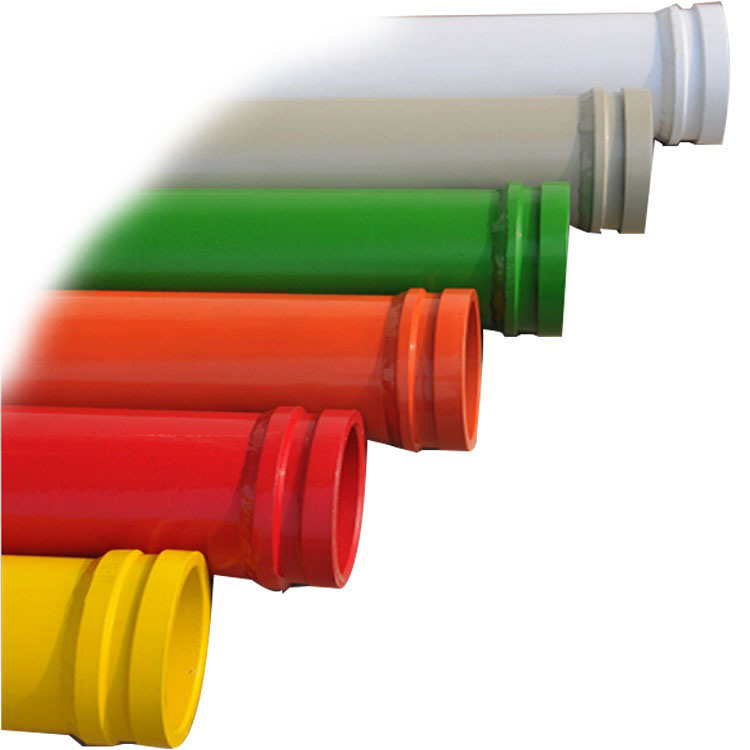

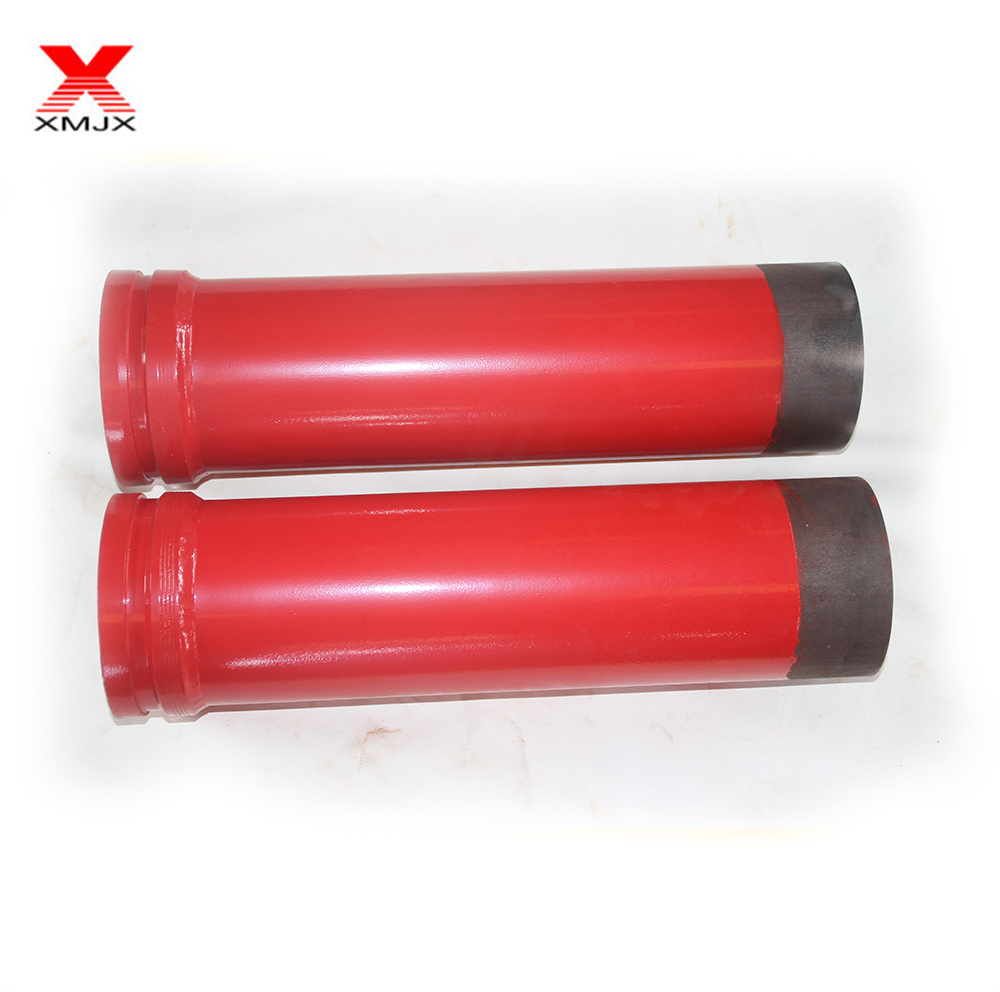

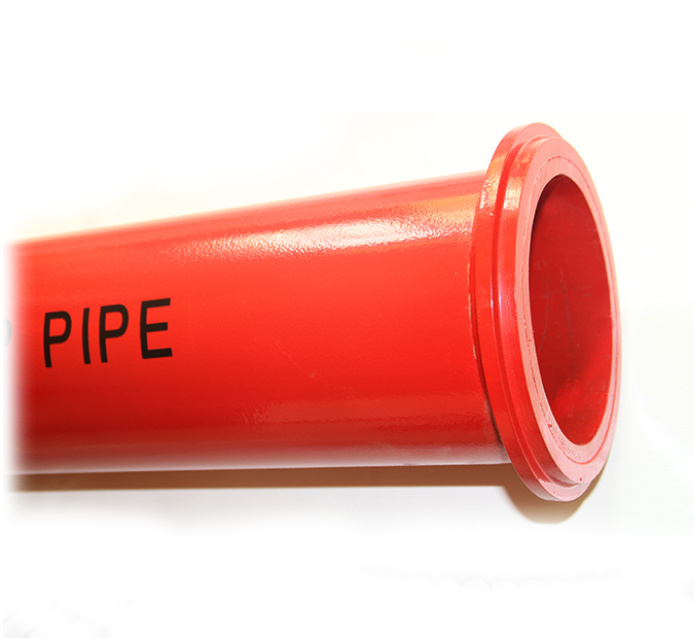

Carbon Steel High Pressure Reinforced Concrete Pump Pipe

Short Description:

Port: Tianjin, China

Production Capacity: 500PCS/Per Day
Payment Terms: L/C, T/T, D/P, Western Union, Paypal, Money Gram
Type: Pipe
Application: Concrete Pump
Certification: CE, ISO9001: 2000
Condition: New
Material: 20# St52 M16 M55 Q235
Thickness(mm): 3~5


Product Detail

Product Tags

Basic Info

Length Deviation
+-1mm

Length(mm)
1000~6000 or Customized

Theoretical Weight(Lbs/Kg)
12/5.4

Flange Tape
Sk148 HD157 Zx175 FM175

Weld Tensile Strength
>480bar

Test Pressure
160~360bar

Color
Red Black White or Customized

Surface Coating
Baking Paint

Trademark
Ximai

Transport Package
Standard Export Package

Specification
ST52 LINE PUMP PIPE DN65 -2.5

Origin
China

HS Code
841391

Product description…………………………………………………………………………………………………………………………………….
High quality line pump pipes
LINE PUMP PIPE DN65 -2.5" With SK, HD, ZX, FM Flange Ends
Part Number Thickness(mm) Theoretical weight(lbs./kg.)/meter LengthDeviation TestPressure WeldTensileStrength SurfaceCoating
ST52-2530 3.0 12/5.4 ±1mm 160bar >360bar Painting
ST52-2535 3.5 13.8/6.3 ±1mm 180bar >360bar Painting
ST52-2540 4.0 15.6/7.1 ±1mm 160bar >480bar Painting
ST52-2545 4.5 17.5/7.9 ±1mm 180bar >480bar Painting
ST52-2550 5.0 19.3/8.8 ±1mm 250bar >480bar Painting
Length=1000mmLength=2000mmLength=3000mmLength=3048mm(Length=120 inch, Length=10 feet)Length=4500mmLength=6000mm……..Any length and thickness can be customized.

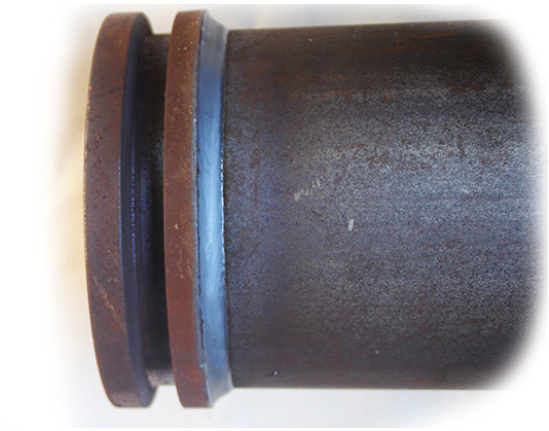

Any types of weld ends are available.METRIC (SK) WELD ENDSHEAVY DUTY WELD ENDSSCHWING F/M WELD ENDSPUTZMEISTER Z/X WELD ENDS

Our service………………………………………………………………………………………………………………………………………..

High Quality:ISO9001, CE, CO certifications etc. All components adopt the qualified materials.100% quality check and durable testing for every product before shipment.
Competitive Price
Large scale production and well trained workers reduce cost greatly,Ximai use the Bottom Price to make you become the most competitive seller in your region.One-Stop Shopping
Our major is concrete pump pipe and forged coupling, we also have several partners,supplying related products so that can meet customers’ needs.Short Lead Time
We have power production capacity, produce 1500 sets couplings and 500pcs pipes every day.We can have your urgent orders ready in short time.Standard export package
Our package is in conformity with export requirements.We ensure it’s very safe and firm in the course of shipping.Customer Service
Top sales with professional skills make you never feel difficult to communicate with a factory,all Ximaistaff will stand by you, reply your inquiry and solve your problem, no matter pre-sales or after-sales.

Production display………………………………………………………………………………………………………………………….Carbon Steel High Pressure Reinforced Concrete Pump PipeCarbon Steel High Pressure Reinforced Concrete Pump PipeCarbon Steel High Pressure Reinforced Concrete Pump PipeCarbon Steel High Pressure Reinforced Concrete Pump PipeCarbon Steel High Pressure Reinforced Concrete Pump Pipe

Product process………………………………………………………………………………………………………………………………………… Carbon Steel High Pressure Reinforced Concrete Pump PipeProduct test……………………………………………………………………………………………………………………………………….Carbon Steel High Pressure Reinforced Concrete Pump Pipe

Quality assurance: We hereby confirm to undertake all the losses which caused by our product quality.

Packaging&Shipping……………………………………………………………………………………………………………………………….Carbon Steel High Pressure Reinforced Concrete Pump PipeCarbon Steel High Pressure Reinforced Concrete Pump PipeContact us……………………………………………………………………………………………………………………………………………..Carbon Steel High Pressure Reinforced Concrete Pump PipeFAQ……………………………………………………………………………………………………………………………………………………………….

Q: Are you trading company or manufacturer ?

A: We are a factory.

Q: How long is your delivery time?

A: Generally it is 5-10 days if the goods are in stock. or it is 15-20 days if the goods are not in stock, it is according to your quantity.

Q: Do you provide samples ? is it free or extra ?

A: Yes, we could offer the sample for free charge but the cost of freight by your side.
