Wholesale High Quality Twin Wall Pump Pipe for Boom Pump Truck

Short Description:

Port: Tianjin, China

Production Capacity: 500PCS/Per Day
Payment Terms: L/C, T/T, D/P, Western Union, Paypal, Money Gram
Type: Pipe
Application: Concrete Pump
Certification: CE, ISO9001: 2000
Condition: New
Material: 20# St52 16mn 37mn5 55mn Nm900
Thickness: 4.85mm


Product Detail

Product Tags

Basic Info

Model NO.
DN125  4.85mm (3.25m + 1.6mm)

Wall Thickness
1.65+3.2mm

Length Deviation
+-1mm

Length(in/mm)
118.12/3000 or Customized

Hardeness
up to 68HRC

Hardened Process
UHF Quenching (400kHz)

Theoretical Weight(Lbs/Kg)
101/46

Flange Tape
Sk148 HD157 Zx175 FM175

Weld Tensile Strength
>480bar

Test Pressure
>170bar

Color
Red Black White or Customized

Surface Coating
Baking Paint

Trademark
Ximai

Transport Package
Standard Export Package

Specification
DN125/5"

Origin
China

HS Code
841391

Product description

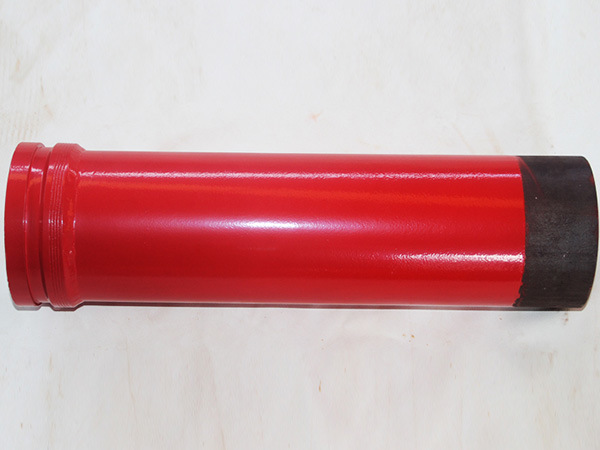

High quality twin wall concrete pump pipes
TWIN WALL BOOM PIPE DN125 4.85mm (3.25m + 1.6mm) with 148mm chrome alloy liner weld ends
Part Number Length(in/mm) Theoretical weight(lbs./kg.) HardenedProcess HardnessHRC LengthDeviation TestPressure WeldTensileStrength SurfaceCoating
TW485W50L1M 39.37/1000 36/15 UHF Quenching(400KHz) UP to 68 ±1mm 170bar >480bar Baking paint
TW485W50L2M 78.75/2000 71/31 UHF Quenching(400KHz) UP to 68 ±1mm 170bar >480bar Baking paint
TW485W50L3M 118.12/3000 101/46 UHF Quenching(400KHz) UP to 68 ±1mm 170bar >480bar Baking paint
TW485W50L4M 157.48/4000 135/61 UHF Quenching(400KHz) UP to 68 ±1mm 170bar >480bar Baking paint
TW485W50L6M 236.22/6000 202/92 UHF Quenching(400KHz) UP to 68 ±1mm 170bar - Primer
Any length can be customized,please consult us.

1.We are a professional manufacturer of concrete pump pipes in China.Our products include delivery pipes,elbows,reducers,couplings,rubber hoses,cleaning ball and so on.

2.Our products are top quality in china which have been used on SCHWING ,PM ,KYOKUTO ,SANY ,ZOOMLION ,CIFA,SINOTRUK(CNHTC),FOTON,XUGONG,CHUTIAN,HAINUO etc and have been recognized by them.

3.The HRC of it’s inner wall can reach 60~68 degrees and the serving life of it can increase 3~5 times.

4.It is quenched and carried out carburizing chemical treatment on the inner wall.It has a high wear-resistant.

5.OEM available from us.Production displayWholesale High Quality Twin Wall Pump Pipe for Boom Pump TruckWholesale High Quality Twin Wall Pump Pipe for Boom Pump TruckWholesale High Quality Twin Wall Pump Pipe for Boom Pump Truck

Product process Wholesale High Quality Twin Wall Pump Pipe for Boom Pump TruckProduct testWholesale High Quality Twin Wall Pump Pipe for Boom Pump TruckPackaging&ShippingWholesale High Quality Twin Wall Pump Pipe for Boom Pump TruckWholesale High Quality Twin Wall Pump Pipe for Boom Pump TruckContact us Wholesale High Quality Twin Wall Pump Pipe for Boom Pump Truck
