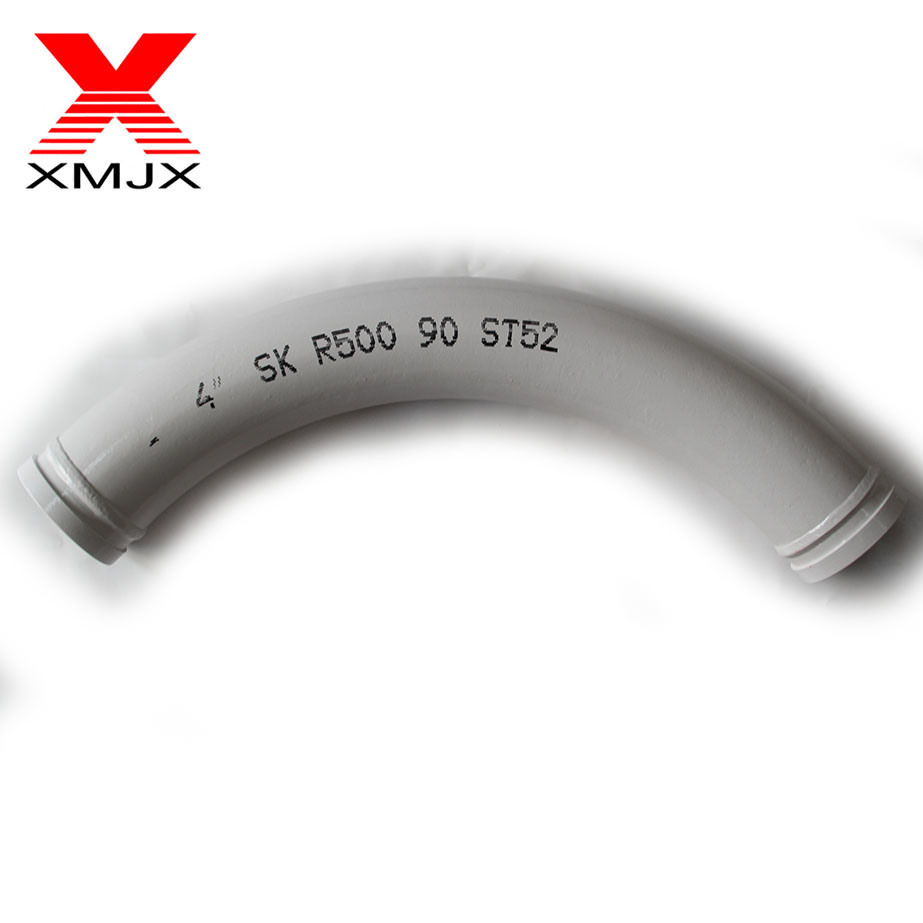

Wear Resistant Concrete Pump Bend Pipe Close to Your Business

Short Description:

Port: Tianjin, China
Production Capacity: 500PCS/Per Day
Payment Terms: L/C, T/T, D/P, Western Union, Paypal, Money Gram
Type: Bend Pipe
Application: Concrete Pump
Certification: CE, ISO9001: 2000
Condition: New
Material: 20# St52 37mn5 70mn
Hardeness: up to 68HRC


Product Detail

Product Tags

Basic Info

Thickness
3.0~14mm
Theoretical Weight(Lbs/Kg)
9.5/4.3
Center Line Radius in./mm
16/406
Length Deviation
<+-1mm
Angular Deviation
<1 Degree
Hardened Process
UHF Quenching (400kHz)
Flange Tape
Sk148 HD157 Zx175 FM175
Weld Tensile Strength
>580bar
Color
Red Black White or Customized
Surface Coating
Baking Paint
Manufacture Process
Pushed/Quenched/Automatic Welding
Pressure Detection Rate
100%
Trademark
Ximai
Transport Package
Standard Export Package
Specification
BEND PIPE DN65-2.5"
Origin
China
HS Code
841391
Product description.......................................................................................................................................................

High quality staionary concrete pump bend pipes
CONCRETE PUMP BEND PIPE DN65-2.5"
Part NO. ODIn./DIN Center Line RadiusIn./mm Degree ofAngle Theoreticalweight(lbs./kg.)
BP651645 2.5/ DN65 16/406 45 9.5/4.3
BP651690 2.5/ DN65 16/406 90 14.1/6.4
BP654845 2.5/ DN65 48/1219 45 25.3/11.5
BP654890 2.5/ DN65 48/1219 90 41/18.6
Any type of elbow can be customized
Any types of weld ends are available.METRIC (SK) WELD ENDSHEAVY DUTY WELD ENDSSCHWING F/M WELD ENDSPUTZMEISTER Z/X WELD ENDS

Advantages

The high qualitystructure ensures high abrasion resistance and toughness

Manganese alloy iron casting enables the liner highly wear proof and reduce pressure

Seamless welding enables the the outer layerhard to explode

Light weight improves vehicle efficiency, highly reduces labor and cost and the time for replacement

Designed structure, material and process realize its 3-5 times service life of common products

to extend the service life of other pipe fitting

Easy to use and handle

Our service...........................................................................................................................................................

High Quality:ISO9001, CE, CO certifications etc. All components adopt the qualified materials.100% quality check and durable testing for every product before shipment.
Competitive Price
Large scale production and well trained workers reduce cost greatly,Ximai use the Bottom Price to make you become the most competitive seller in your region.One-Stop Shopping
Our major is concrete pump pipe and forged coupling, we also have several partners,supplying related products so that can meet customers' needs.Short Lead Time
We have power production capacity, produce 1500 sets couplings and 500pcs pipes every day.We can have your urgent orders ready in short time.Standard export package
Our package is in conformity with export requirements.We ensure it's very safe and firm in the course of shipping.Customer Service
Top sales with professional skills make you never feel difficult to communicate with a factory,all Ximaistaff will stand by you, reply your inquiry and solve your problem, no matter pre-sales or after-sales.

Production display...........................................................................................................................................Wear Resistant Concrete Pump Bend Pipe Close to Your BusinessWear Resistant Concrete Pump Bend Pipe Close to Your BusinessWear Resistant Concrete Pump Bend Pipe Close to Your BusinessProduct process............................................................................................................................................................

Wear Resistant Concrete Pump Bend Pipe Close to Your BusinessProduct test..........................................................................................................................................................Wear Resistant Concrete Pump Bend Pipe Close to Your BusinessWear Resistant Concrete Pump Bend Pipe Close to Your Business

Quality assurance: We hereby confirm to undertake all the losses which caused by our product quality.

Packaging&Shipping.................................................................................................................................................Wear Resistant Concrete Pump Bend Pipe Close to Your BusinessWear Resistant Concrete Pump Bend Pipe Close to Your BusinessFAQ.....................................................................................................................................................................................

Q: Are you trading company or manufacturer ?

A: We are a factory.

Q: How long is your delivery time?

A: Generally it is 5-10 days if the goods are in stock. or it is 15-20 days if the goods are not in stock, it is according to your quantity.

Q: Do you provide samples ? is it free or extra ?

A: Yes, we could offer the sample for free charge but the cost of freight by your side.
