Trailer and Truck Mounted Concrete Pump Reducing Pipe Raw Reducer

Short Description:

Port: Tianjin, China

Production Capacity: 500PCS/Per Day
Payment Terms: L/C, T/T, D/P, Western Union, Paypal, Money Gram
Type: Pipe
Application: Concrete Pump
Certification: CE, ISO9001: 2000
Condition: New
Material: 20# St52 16mn 37mn5 55mn 70mn
Materials: High Chromium


Product Detail

Product Tags

Basic Info

Model NO.
Line pipe reducer

Thickness
8~10mm

Length Deviation
+-1mm

Length
2"X 1.5" 12"~5"X 4" 36" or Customized

Hardeness
up to 68HRC

Hardened Process
UHF Quenching (400kHz)

Theoretical Weight(Lbs/Kg)
90/40.9

Flange Tape
Sk148 HD157 Zx175 FM175

Pressure
280bar

Weld Tensile Strength
>890bar

Color
Blue Yellow Red Black White or Customized

Surface Coating
Baking Paint

Manufacture Process
Pushed/Automatic Welding/Precise Casting

Trademark
Ximai

Transport Package
Standard Export Package

Specification
DN150-125*1200mm

Origin
China

HS Code
841391

Product description…………………………………………………………………………………………………………………………………….

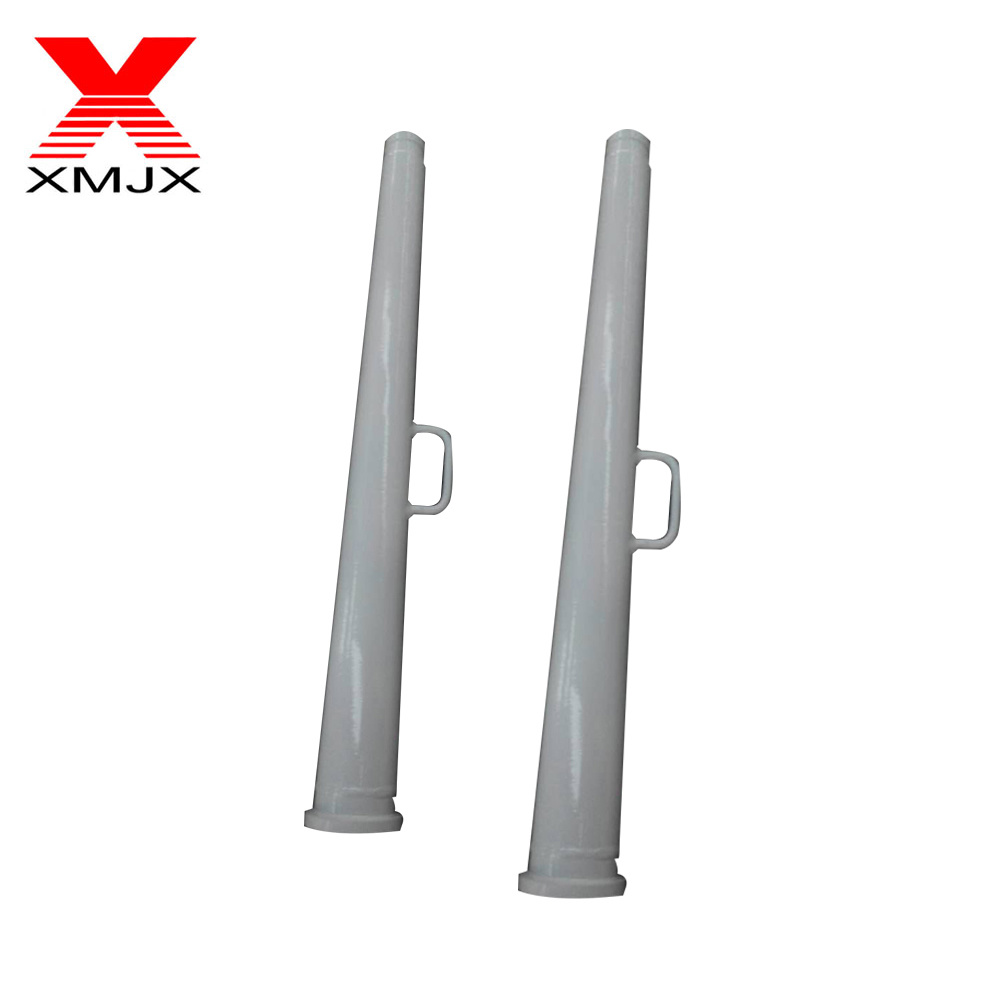

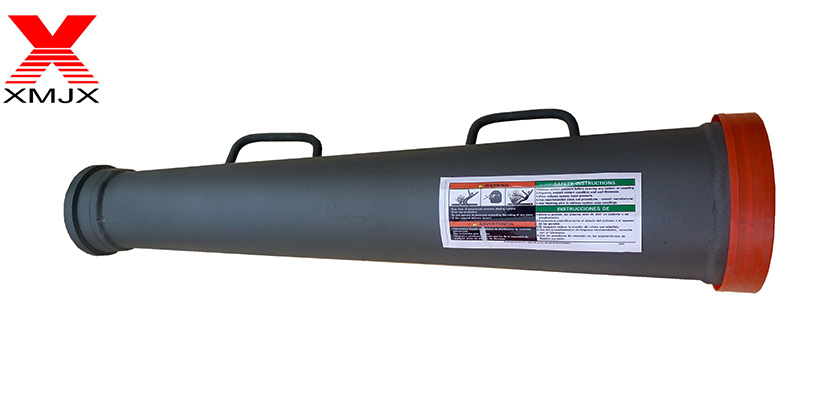

High quality concrete pump reducer pipes
ST52REDUCERPIPE6"ZXMale-5"Metric1200MM(47.25In.)
Specification Structure Material ApproximatelyWallThickness(mm) ShippingWeightlbs/kg Manufactureprocess Dimensiontolerance Pressure Weldtensilestrength
DN150-125×1200mm Singlewall ST52 8 81/36.8 Pushed/Automaticwelding <1mm< 260bar >890bar
HCCIREDUCERPIPE(Highchromiumcastironreducerpipe)6"ZXMale-5"Metric1200MM(47.25In.)
Specification Structure Material ApproximatelyWallThickness(mm) ShippingWeightlbs/kg Manufactureprocess Dimensiontolerance Pressure Weldtensilestrength
DN150-125×1200mm Singlewall Highchromiumcastiron 10 95.6/43.9 Precisioncasting <1mm< 280bar >890bar
Mn13-4REDUCERPIPE6"ZXMale-5"Metric1200MM(47.25In.)
Specification Structure Material ApproximatelyWallThickness(mm) ShippingWeightlbs/kg Manufactureprocess Dimensiontolerance Pressure Weldtensilestrength
DN150-125×1200 Singlewall Mn13-4 10 95.6/43.9 Precisioncasting <1mm< 280bar >890bar

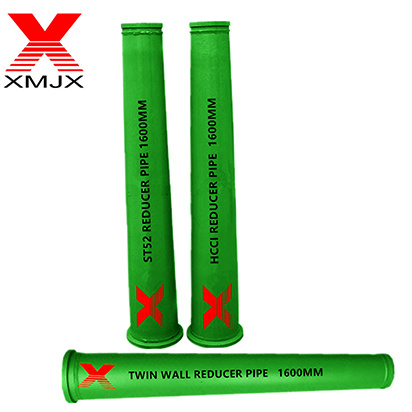

TWINWALLREDUCERPIPE6"ZXMale-5"Metric1200MM(47.25In.)
Specification Structure Material ApproximatelyWallThickness(mm) ShippingWeightlbs/kg Manufactureprocess Dimensiontolerance Pressure Weldtensilestrength
DN150-125×1200 Twinwall chromiumcastiron×6.0mm/ST52×4.0mm 10 90/40.9 UHFquenching(400KHz) <1mm< 200bar >650bar

Our service………………………………………………………………………………………………………………………………………..

High Quality:ISO9001, CE, CO certifications etc. All components adopt the qualified materials.100% quality check and durable testing for every product before shipment.
Competitive Price
Large scale production and well trained workers reduce cost greatly,Ximai use the Bottom Price to make you become the most competitive seller in your region.One-Stop Shopping
Our major is concrete pump pipe and forged coupling, we also have several partners,supplying related products so that can meet customers’ needs.Short Lead Time
We have power production capacity, produce 1500 sets couplings and 500pcs pipes every day.We can have your urgent orders ready in short time.Standard export package
Our package is in conformity with export requirements.We ensure it’s very safe and firm in the course of shipping.Customer Service
Top sales with professional skills make you never feel difficult to communicate with a factory,all Ximaistaff will stand by you, reply your inquiry and solve your problem, no matter pre-sales or after-sales.

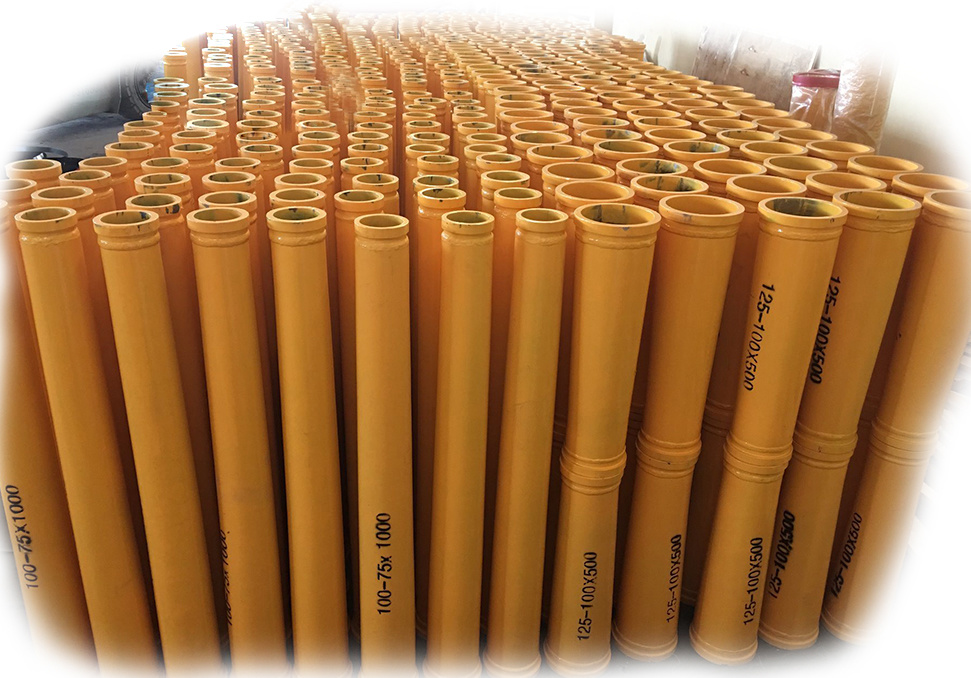

Production display………………………………………………………………………………………………………………………….Trailer and Truck Mounted Concrete Pump Reducing Pipe Raw ReducerTrailer and Truck Mounted Concrete Pump Reducing Pipe Raw ReducerTrailer and Truck Mounted Concrete Pump Reducing Pipe Raw ReducerProduct process…………………………………………………………………………………………………………………………………………

Trailer and Truck Mounted Concrete Pump Reducing Pipe Raw ReducerProduct test……………………………………………………………………………………………………………………………………….Trailer and Truck Mounted Concrete Pump Reducing Pipe Raw Reducer

Quality assurance: We hereby confirm to undertake all the losses which caused by our product quality.

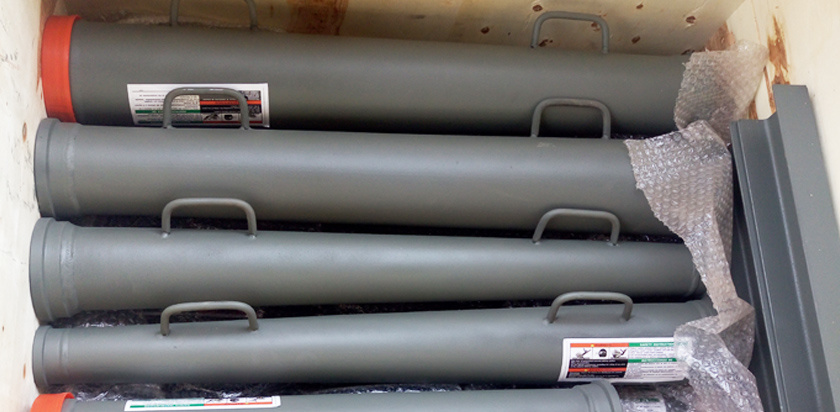

Packaging&Shipping……………………………………………………………………………………………………………………………….Trailer and Truck Mounted Concrete Pump Reducing Pipe Raw ReducerTrailer and Truck Mounted Concrete Pump Reducing Pipe Raw ReducerTrailer and Truck Mounted Concrete Pump Reducing Pipe Raw ReducerContact us……………………………………………………………………………………………………………………………………………..Trailer and Truck Mounted Concrete Pump Reducing Pipe Raw ReducerTrailer and Truck Mounted Concrete Pump Reducing Pipe Raw ReducerFAQ……………………………………………………………………………………………………………………………………………………………….

Q: Are you trading company or manufacturer ?

A: We are a factory.

Q: How long is your delivery time?

A: Generally it is 5-10 days if the goods are in stock. or it is 15-20 days if the goods are not in stock, it is according to your quantity.

Q: Do you provide samples ? is it free or extra ?

A: Yes, we could offer the sample for free charge but the cost of freight by your side.
