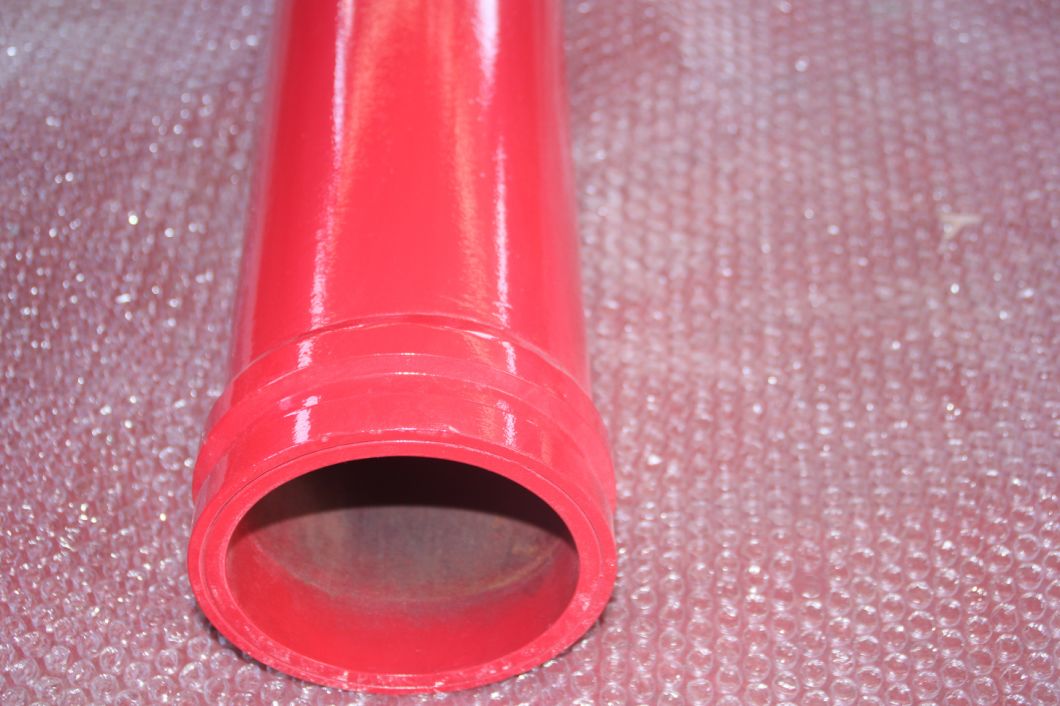

Schwing Dn125 Single Wall Hardened Pipe

Short Description:

Port: Tianjin, China

Production Capacity: 1000PCS Per Day
Payment Terms: L/C, T/T, D/P, Western Union, Paypal
Type: Pipe
Application: Concrete Pump
Certification: CE, ISO9001: 2000
Condition: New
Material: Steel Alloy
Length(mm): Customized


Product Detail

Product Tags

Basic Info

Model NO.
HARDENED PIPE DN125 8.1mm

Hardened Process
UHF Quenching (400kHz)

Flange Tape
Sk 148mm

Test Pressure
280bar

Surface Coating
Baking Paint

Length Deviation
+-1mm

Hardeness
up to 65

Theoretical Weight(Lbs/Kg)
57/26

Weld Tensile Strength
>480bar

Color
Red Black White or Customized

Length (in/mm)
39.37/1000

Trademark
Ximai

Transport Package
Standard Export Package

Specification
HARDENED PIPE DN125 8.1mm

Origin
China

Factory directly supply High quality concrete hardenedpump pipe
HT810W50
PRODUCT FEATURES
HARDENED PIPE DN125 8.1mm with 148mm chrome alloy liner weld ends
Part Number Length(in/mm) Theoretical weight(lbs./kg.) HardenedProcess HardnessHRC LengthDeviation TestPressure WeldTensileStrength SurfaceCoating
HT810W50L1M 39.37/1000 57/26 UHF Quenching(400KHz) UP to 65 ±1mm 280bar >480bar Baking paint
HT810W50L2M 78.75/2000 117/53 UHF Quenching(400KHz) UP to 65 ±1mm 280bar >480bar Baking paint
HT810W50L3M 118.12/3000 172/78 UHF Quenching(400KHz) UP to 65 ±1mm 280bar >480bar Baking paint
HT810W50L4M 157.48/4000 230/104 UHF Quenching(400KHz) UP to 65 ±1mm 280bar >480bar Baking paint
HT810W50L6M 236.22/6000 344/156 UHF Quenching(400KHz) UP to 65 ±1mm 280bar - Primer

Schwing Dn125 Single Wall Hardened PipeSchwing Dn125 Single Wall Hardened PipeSchwing Dn125 Single Wall Hardened PipeSchwing Dn125 Single Wall Hardened PipeSchwing Dn125 Single Wall Hardened PipeSchwing Dn125 Single Wall Hardened PipeSchwing Dn125 Single Wall Hardened Pipe
