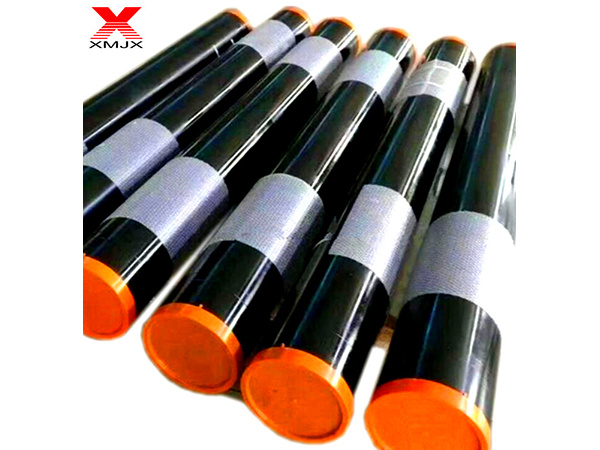

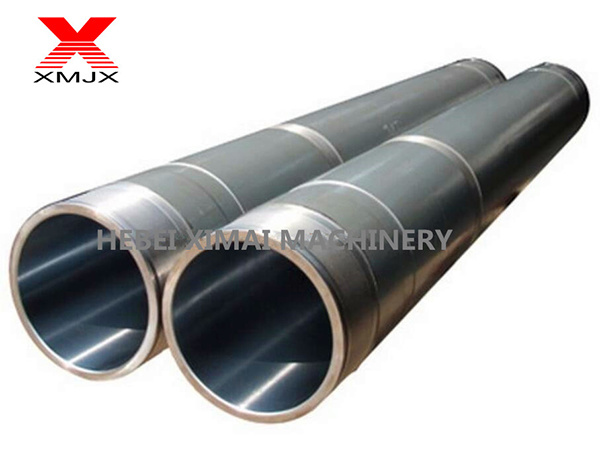

Schwing Converying Concrete Pump Delivery Cylinder

Short Description:

Port: Tianjin, China

Production Capacity: 5000PCS/Day
Payment Terms: L/C, T/T, D/P, Western Union, Paypal, Money Gram
Material: Steel Alloy
Standard: ASTM, API, DIN
Diameter: 305mm
Medium: Fluids With Solid Particle
Cross-Section Shape: Round
Connection Type: Flange


Product Detail

Product Tags

Basic Info

Model NO.
DN200/DN230/DN250

Inner Layer Hardness
up to HRC67

Length Deviation
+/-1mm

Test Pressure
280bar

Weld Tensile Strength
480bar

Surface Coating
Baking Paint

Theoretical Weight (Lbs./Kg.)
101/46

Hardened Process
UHF Quenching (400kHz)

Trademark
XIMAI

Transport Package
Waterproof Packaging + Flange Sheath + Bundling

Specification
DN200/DN250/DN230/DN280

Origin
China

HS Code
8413910000

PM/SCHWING /SANY/ZOOMLIONPump Cylinder
Putzmeister
Outer Diameter(mm) Inner Diameter(mm) length(mm) Travel(mm)
305 280 2355 2200
278 250 2710 2500
278 250 2310 2100
254 230 2320 2100
254 230 1600 1400
219 200 2305 2100
219 200 1585 1400
203 180 2305 2100
Schwing
Outer Diameter(mm) Inner Diameter(mm) length(mm) Travel(mm)
270 250 2635 2500
270 250 2135 2000
251 230 2125 2000
251 230 2133 2000
253 230 1175 1000
219 200 2125 2000
219 200 1775 1600
210 180 2125 2000
203 180 2125 2000
202 180 1775 1600
200 180 1520 1400
196 180 1320 1200
200 180 1175 1000
Sany
Outer Diameter(mm) Inner Diameter(mm) length(mm) Travel(mm)
280 260 2345 2200
280 260 2245 2100
280 260 2145 2000
280 260 2045 1900
258 230 2146 2000
258 230 1946 1800
258 230 1746 1600
226 200 1946 1800
226 200 1746 1600
226 200 1546 1400
Zoomlion
Outer Diameter(mm) Inner Diameter(mm) length(mm) Travel(mm)
280 260 2250 2100
250 230 2250 2100
258 230 1800 1600
219 200 1960 1800
219 200 1800 1600
219 200 1587 1400
