One of Hottest for Concrete Contractors Supply - St52 Concrete Pump Bend Pipe – Ximai
One of Hottest for Concrete Contractors Supply - St52 Concrete Pump Bend Pipe – Ximai Detail:
Basic Info
Center Line Radius in./mm
16"/406mm, 48"/1219mm, Customize
Degree of Angle
45deg/90deg, Customize
Length Deviation
+-1mm
Flange Tape
Sk HD Zx FM
Weld Tensile Strength
>360bar
Test Pressure
160bar
Color
Red Black White or Customized
Surface Coating
Baking Paint
Trademark
Ximai
Transport Package
Standard Export Package
Specification
DN50/2"
Origin
China
HS Code
841391
Product description
High quality ST52 concrete pump bend pipes
| BEND PIPE DN50-2" | ||||
| Part NO. | ODIn./DIN | Center Line RadiusIn./mm | Degree ofAngle | Theoreticalweight(lbs./kg.) |
| BP501645 | 2.0/ DN50 | 16/406 | 45 | 7.0/3.2 |
| BP501690 | 2.0/ DN50 | 16/406 | 90 | 11.7/5.3 |
| BP504845 | 2.0/ DN50 | 48/1219 | 45 | 14.1/6.4 |
| BP504890 | 2.0/ DN50 | 48/1219 | 90 | 27.5/12.5 |
| Any type of elbow can be customized | ||||
| Any types of weld ends are available.METRIC (SK) WELD ENDSHEAVY DUTY WELD ENDSSCHWING F/M WELD ENDSPUTZMEISTER Z/X WELD ENDS | ||||
1.We are aprofessional manufacturer of concrete pump pipes in China.Our products include concrete delivery pipes,elbows,reducers,couplings,rubber hoses,cleaning ball and so on.
2.Our products are top quality in china which have been used on SCHWING ,PM ,KYOKUTO ,SANY ,ZOOMLION ,CIFA,SINOTRUK(CNHTC),FOTON,XUGONG,CHUTIAN,HAINUO etc and have been recognized by them.
3.The HRC of it’s inner wall can reach 60~68 and the serving life of it can increase 3~5 times.
4.It is quenched and carried out carburizing chemical treatment on the inner wall.It has ahigh wear-resistant.
5.OEM available from us.

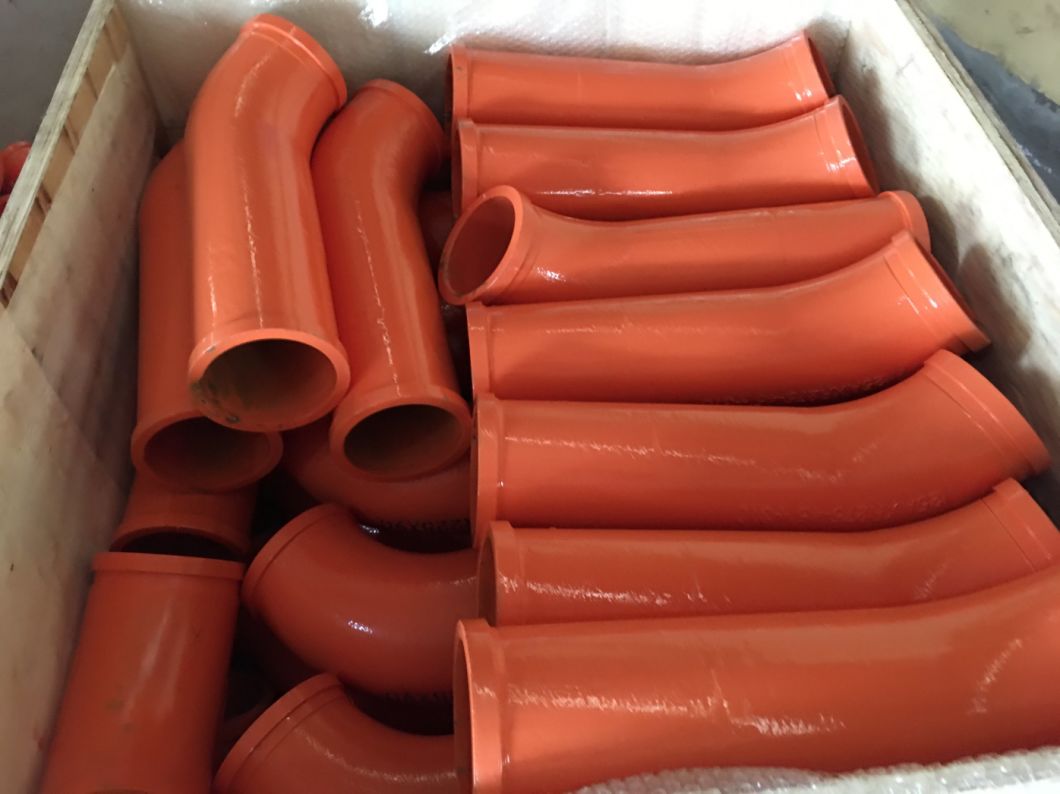

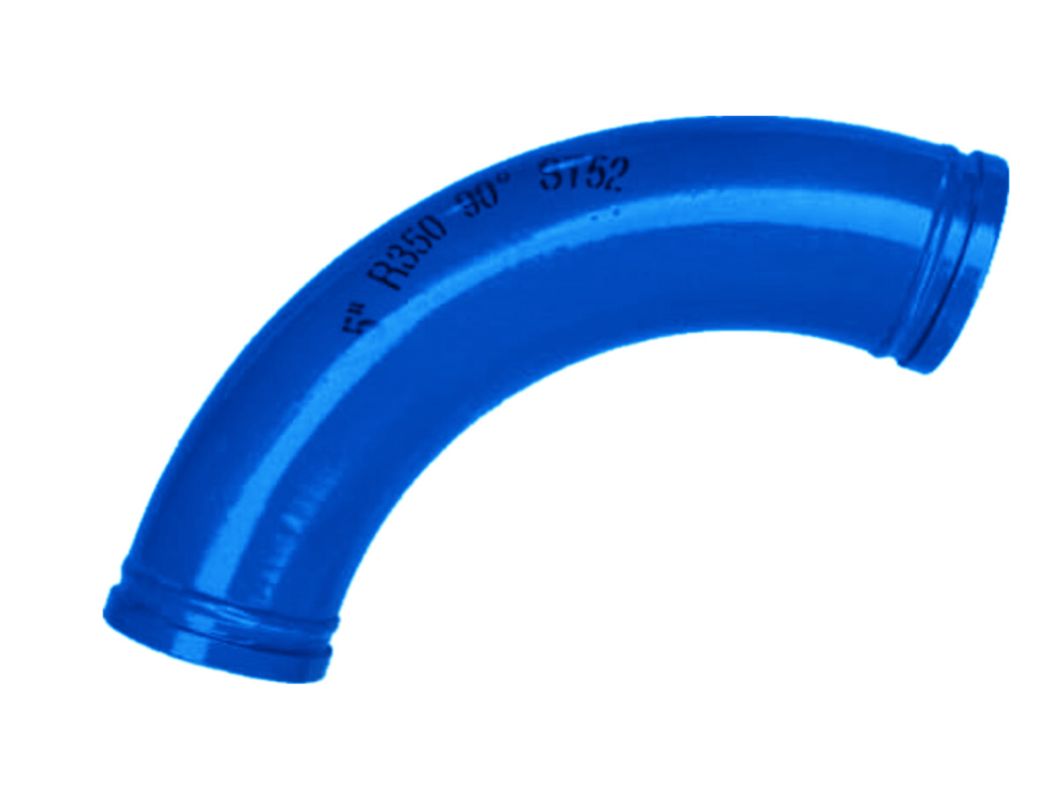

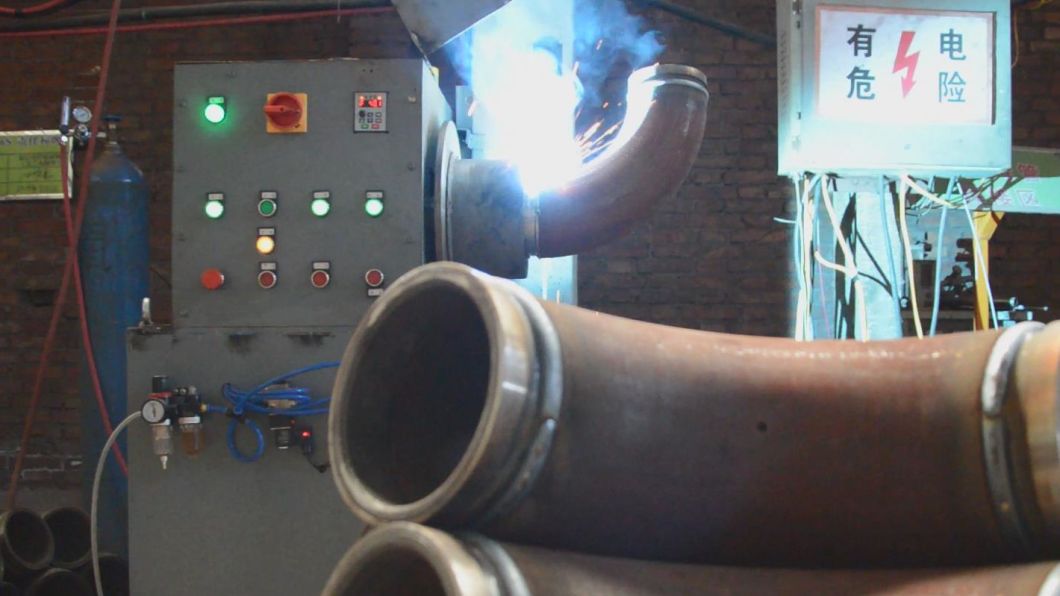

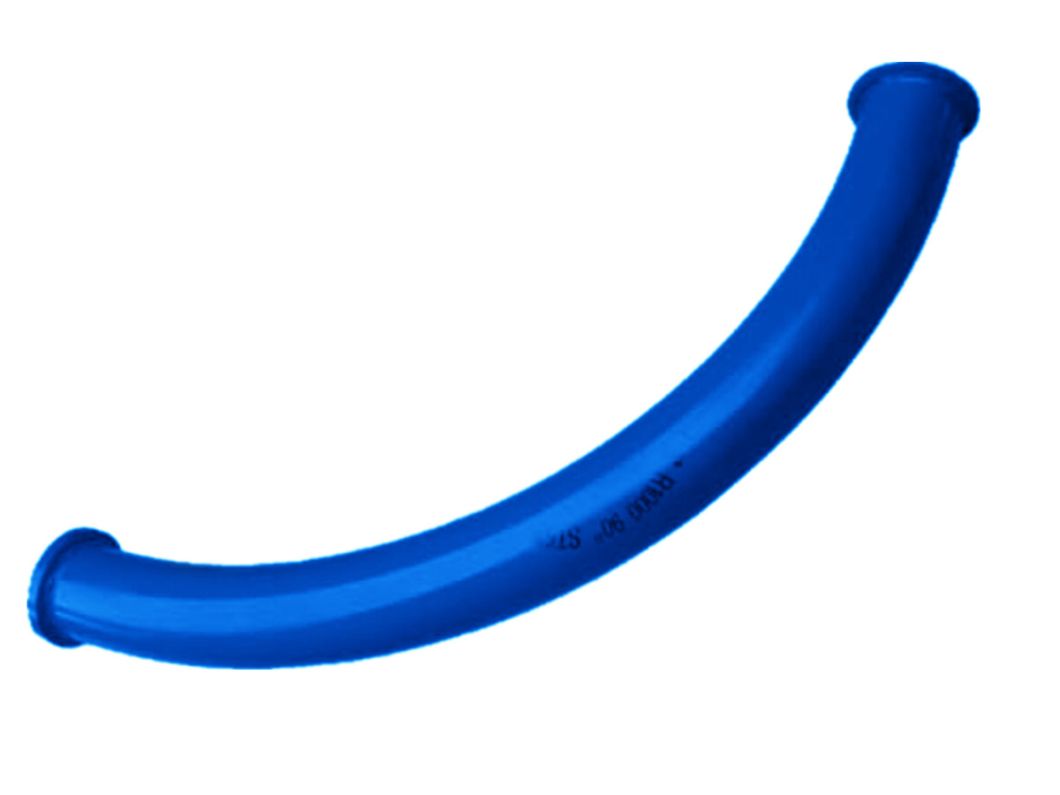

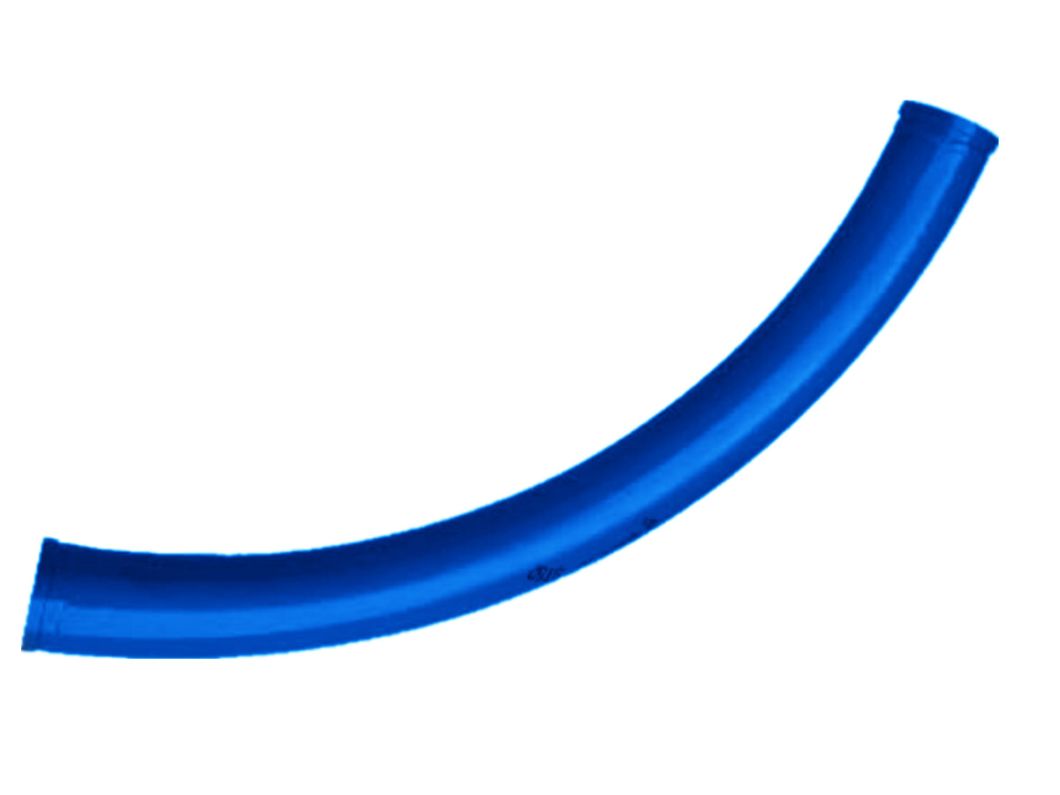

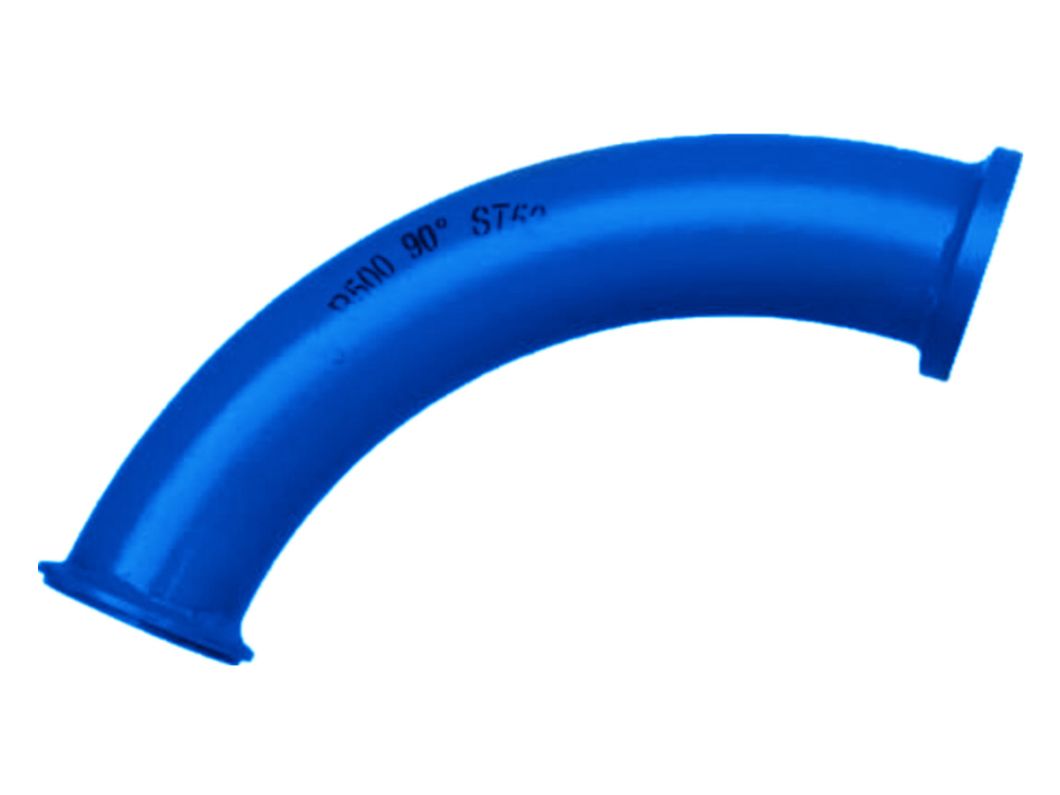

Product detail pictures:
