Low Price Concrete Conveying Pipe Seamless Concrete Pump Pipe

Short Description:

Port: Tianjin, China
Production Capacity: 500PCS Per Day
Payment Terms: L/C, T/T, D/P, Western Union
Type: Seamless
Technique: Automatic Welding
Material: M55-5
Surface Treatment: Varnishing
Usage: Machinery Industry, Mining, Construction & Decoration
Thickness(mm): 10


Product Detail

Product Tags

Basic Info

Model NO.
DN125-5"
Length(mm)
1000~6000 or Customized
Flange Tape
Sk, HD, Zx, FM Flange Ends
Test Pressure
360bar
Surface Coating
Baking Paint
Length Deviation
+-1mm
Theoretical Weight(Lbs/Kg)
70/32
Weld Tensile Strength
>480bar
Color
Red Black White or Customized
Trademark
Ximai
Transport Package
Standard Export Package
Specification
M55 LINE PUMP PIPE DN125 -5"
Origin
China
M55-5
PRODUCT FEATURES

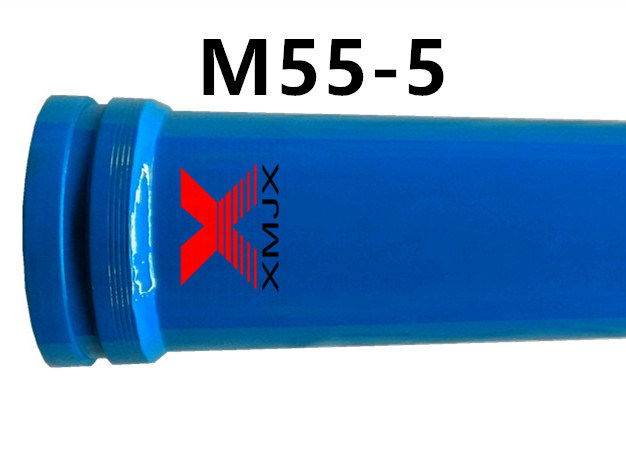

M55 LINE PUMP PIPE DN125 -5" With SK, HD, ZX, FM Flange Ends
Part Number Thickness(mm) Theoretical weight(lbs./kg.)/meter LengthDeviation TestPressure WeldTensileStrength SurfaceCoating
M55-540 4.0 28/12.7 ±1mm 160bar >480bar Painting
M55-545 4.5 31.5/14.3 ±1mm 180bar >480bar Painting
M55-550 5.0 35/15.8 ±1mm 250bar >480bar Painting
M55-560 6.0 44/19.8 ±1mm 280bar >480bar Painting
M55-565 6.5 47/21.4 ±1mm 280bar >480bar Painting
M55-571 7.1 51/23.3 ±1mm 360bar >480bar Painting
M55-591 9.1 65/29.4 ±1mm 360bar >480bar Painting
M55-5100 10.0 70/32 ±1mm 360bar >480bar Painting
M55-5120 12.0 84/38 ±1mm 360bar - Primer
Length=1000mmLength=2000mmLength=3000mmLength=3048mm(Length=120 inch, Length=10 feet)Length=4500mmLength=6000mm........Any length and thickness can be customized.
Any types of weld ends are available.METRIC (SK) WELD ENDSHEAVY DUTY WELD ENDSSCHWING F/M WELD ENDSPUTZMEISTER Z/X WELD ENDS
