Green Color Concrete Pump Pipe for Construction Industry

Short Description:

Port: Tianjin, China
Production Capacity: 500PCS/ Day
Payment Terms: L/C, T/T, D/P, Western Union, Paypal, Money Gram
Type: Pipe
Application: Concrete Pump
Certification: CE, ISO9001: 2000
Condition: New
Material: St52
Thickness: 4.5mm


Product Detail

Product Tags

Basic Info

Length Deviation
+-1mm
Length(in/mm)
118.12/3000 or Customized
Theoretical Weight(Lbs/Kg)
101/46
Flange Tape
Sk148 HD157 Zx175 FM175
Weld Tensile Strength
>480bar
Test Pressure
180bar
Color
Red Black White or Customized
Surface Coating
Baking Paint
Trademark
Ximai
Transport Package
Standard Export Package
Specification
DN125/5″
Origin
China
HS Code
841391
Product description

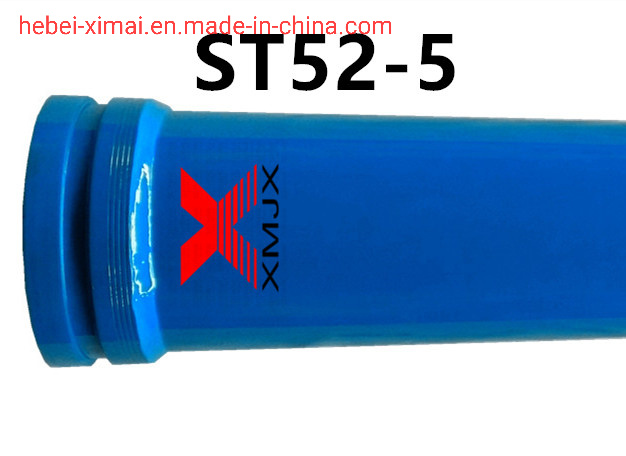

High quality ST52 concrete pump pipes
ST52 LINE PUMPPIPE DN125 -5″ With SK, HD, ZX, FMFlange Ends
Part Number Thickness(mm) Theoretical weight(lbs./kg.)/meter LengthDeviation TestPressure WeldTensileStrength SurfaceCoating
ST52-540 4.0 28/12.7 ±1mm 160bar >480bar Painting
ST52-545 4.5 31.5/14.3 ±1mm 180bar >480bar Painting
ST52-550 5.0 35/15.8 ±1mm 250bar >480bar Painting
ST52-560 6.0 44/19.8 ±1mm 280bar >480bar Painting
ST52-565 6.5 47/21.4 ±1mm 280bar >480bar Painting
ST52-571 7.1 51/23.3 ±1mm 360bar >480bar Painting
ST52-591 9.1 65/29.4 ±1mm 360bar >480bar Painting
ST52-5100 10.0 70/32 ±1mm 360bar >480bar Painting
ST52-5120 12.0 84/38 ±1mm 360bar - Primer
Length=1000mmLength=2000mmLength=3000mmLength=3048mm(Length=120 inch, Length=10 feet)Length=4500mmLength=6000mm……..Any length and thickness can be customized.

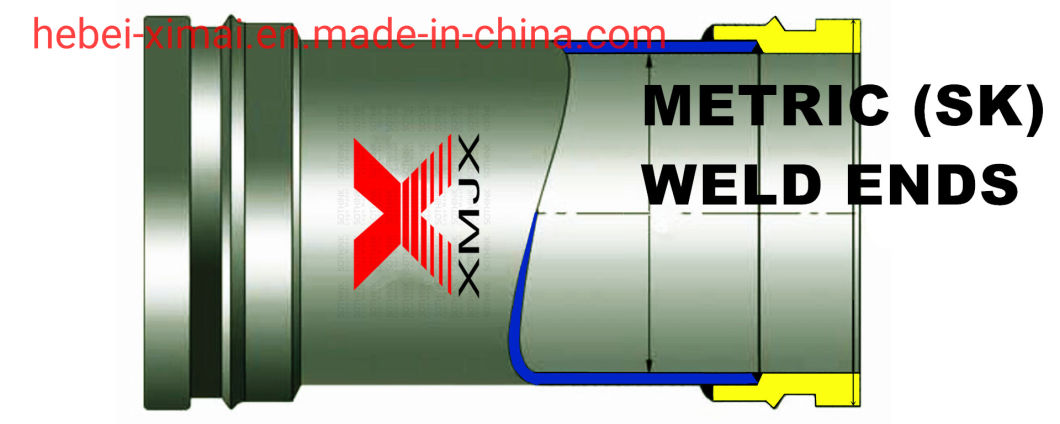

Any types of weld ends are available.METRIC (SK) WELD ENDSHEAVY DUTY WELD ENDSSCHWING F/M WELD ENDSPUTZMEISTER Z/X WELD ENDS

1.We are aprofessional manufacturer of concrete pump pipes in China.Our products include concrete delivery pipes,elbows,reducers,couplings,rubber hoses,cleaning ball and so on.

2.Our products are top quality in china which have been used on SCHWING ,PM ,KYOKUTO ,SANY ,ZOOMLION ,CIFA,SINOTRUK(CNHTC),FOTON,XUGONG,CHUTIAN,HAINUO etc and have been recognized by them.

3.The HRC of it’s inner wall can reach 60~68 and the serving life of it can increase 3~5 times.

4.It is quenched and carried out carburizing chemical treatment on the inner wall.It has ahigh wear-resistant.

5.OEM available from us.Green Color Concrete Pump Pipe for Construction IndustryGreen Color Concrete Pump Pipe for Construction IndustryGreen Color Concrete Pump Pipe for Construction IndustryGreen Color Concrete Pump Pipe for Construction IndustryGreen Color Concrete Pump Pipe for Construction Industry
