Good Quality Concrete Pump Parts Bend Pipe for Pm

Short Description:

Port: Tianjin, China

Production Capacity: 500PCS/Per Day
Payment Terms: L/C, T/T, D/P, Western Union, Paypal, Money Gram
Type: Pipe
Application: Concrete Delivery
Certification: CE, ISO9001: 2000
Condition: New
Material: 20# St52 37mn5 70mn
Hardeness: up to 68HRC


Product Detail

Product Tags

Basic Info

Model NO.
DN150-6"

Theoretical Weight(Lbs/Kg)
25.5/11.6

Length Deviation
<+-1mm

Hardened Process UHF Quenching (400kHz)
UHF Quenching (400kHz)

Weld Tensile Strength
>580bar

Surface Coating
Baking Paint

Pressure Detection Rate
100%

Thickness
8/13mm

Center Line Radius in./mm
14/356

Angular Deviation
<1 Degree

Flange Tape
Sk148 HD157 Zx175 FM175

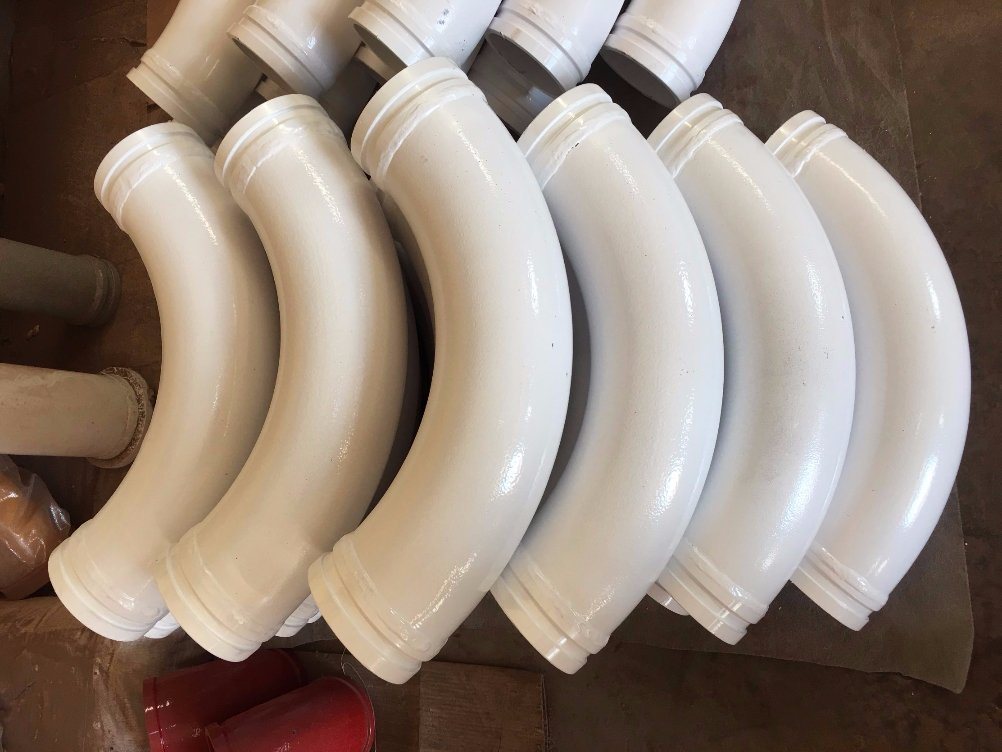

Color
Red Black White or Customized

Manufacture Process
Pushed/Quenched/Auto

Trademark
Ximai

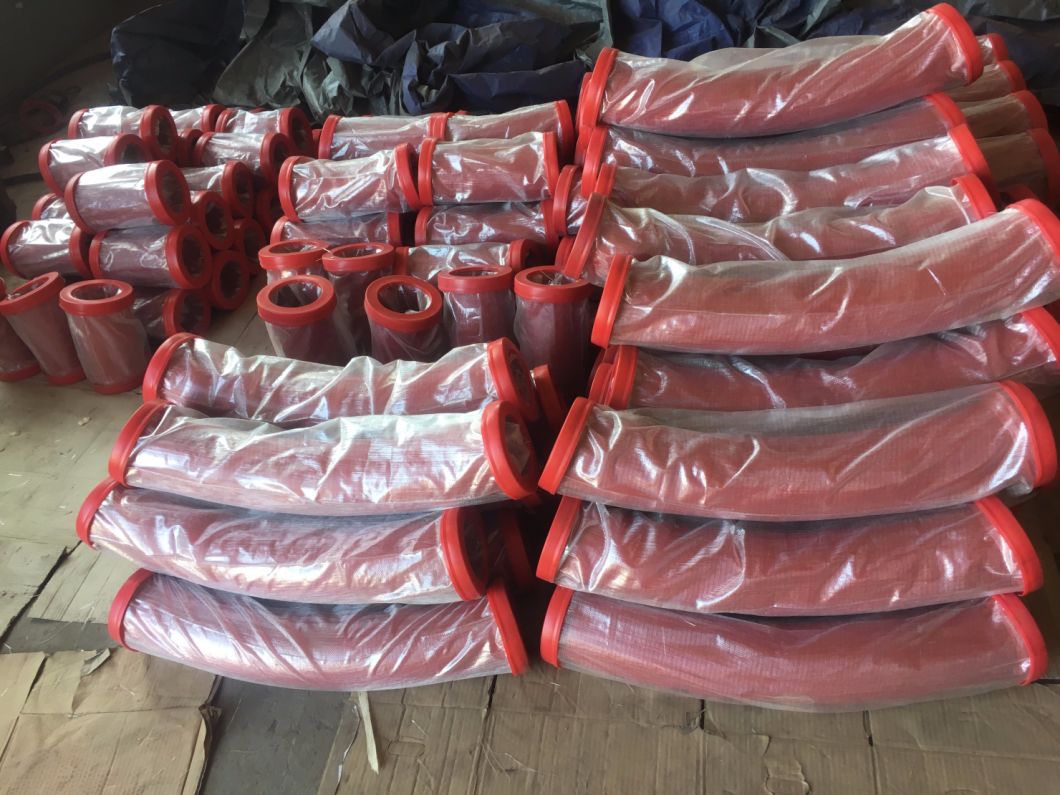

Transport Package
Standard Export Packing

Specification
CONCRETE PUMP BEND PIPE DN150-6"

Origin
China

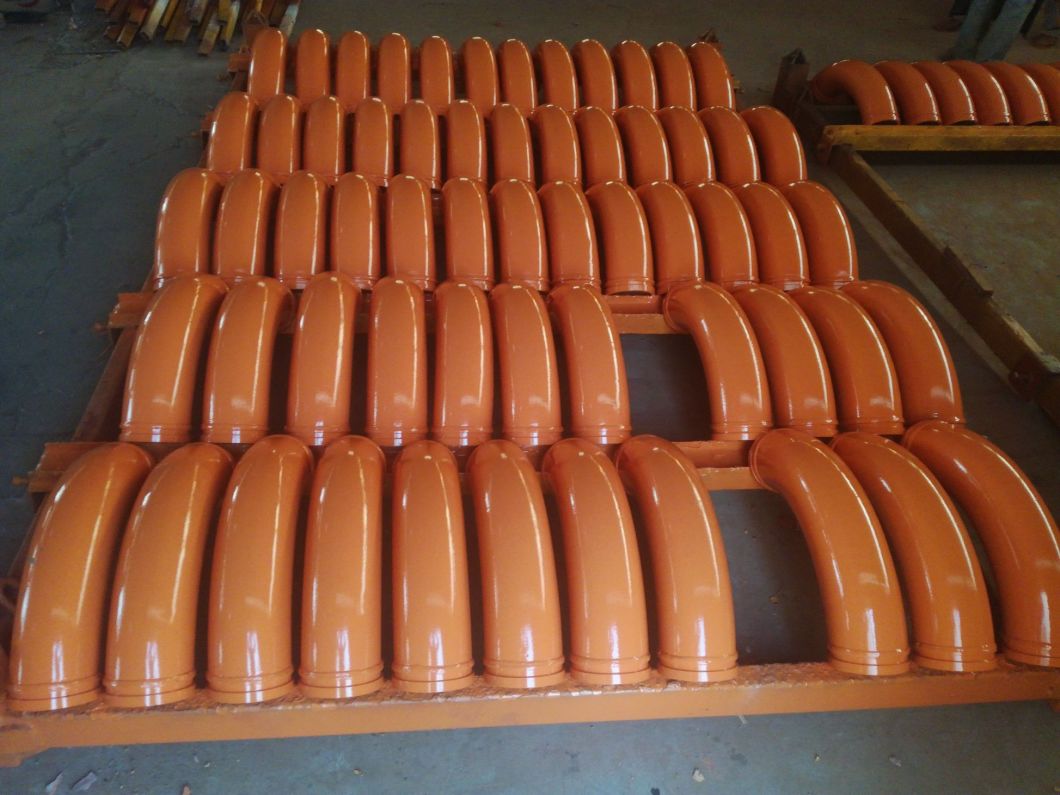

Supply High quality Stationary concrete pump bend pipe
CONCRETE PUMP BEND PIPE DN150-6"
Part NO. ODIn./DIN Center Line RadiusIn./mm Degree ofAngle Theoreticalweight(lbs./kg.)
BP1501445 6.0/ DN150 14/356 45 25.5/11.6
BP1501490 6.0/ DN150 14/356 90 36.3/16.5
BP1501845 6.0/ DN150 18/457 45 27/12.3
BP1501890 6.0/ DN150 18/457 90 45/20.5
BP1503245 6.0/ DN150 24/610 45 31.7/16.4
BP1503290 6.0/ DN150 24/610 90 50.6/23
BP1503245 6.0/ DN150 36/914 45 47/21.7
BP1503290 6.0/ DN150 36/914 90 93.5/42.5
BP1504845 6.0/ DN150 48/1219 45 60/27.2
BP1504890 6.0/ DN150 48/1219 90 107/48.5
Any type of elbow can be customized
Any types of weld ends are available.METRIC (SK) WELD ENDSHEAVY DUTY WELD ENDSSCHWING F/M WELD ENDSPUTZMEISTER Z/X WELD ENDS

1.We are a professional manufacturer of concrete pump pipes in China.Our products include concrete delivery pipes,elbows,reducers,couplings,rubber hoses,cleaning ball and so on.2.Our products are top quality in china which have been used on SCHWING ,PM ,KYOKUTO ,SANY ,ZOOMLION ,CIFA,SINOTRUK(CNHTC),FOTON,XUGONG,CHUTIAN,HAINUO etc and have been recognized by them.3.The HRC of it’s inner wall can reach 60~68 and the serving life of it can increase 3~5 times.4.It is quenched and carried out carburizing chemical treatment on the inner wall.It has a high wear-resistant.5.OEM available from us.Good Quality Concrete Pump Parts Bend Pipe for PmGood Quality Concrete Pump Parts Bend Pipe for PmGood Quality Concrete Pump Parts Bend Pipe for PmGood Quality Concrete Pump Parts Bend Pipe for PmGood Quality Concrete Pump Parts Bend Pipe for Pm
