DN125-100 Concrete Pump Truck Parts of Concrete Delivery Reducer Pipe
Basic Info
Materials
High Chromium
Thickness
10mm
Length Deviation
+-1mm
Length
1200mm or Customized
Hardeness
up to 68HRC
Hardened Process
UHF Quenching (400kHz)
Theoretical Weight(Lbs/Kg)
95.6/43.9
Flange Tape
Sk148 HD157 Zx175 FM175
Pressure
280bar
Weld Tensile Strength
>890bar
Color
Blue Yellow Red Black White or Customized
Surface Coating
Baking Paint
Manufacture Process
Pushed/Automatic Welding/Precise Casting
Trademark
Ximai
Transport Package
Standard Export Package
Specification
DN150-125*1200mm
Origin
China
HS Code
841391
Product description…………………………………………………………………………………………..

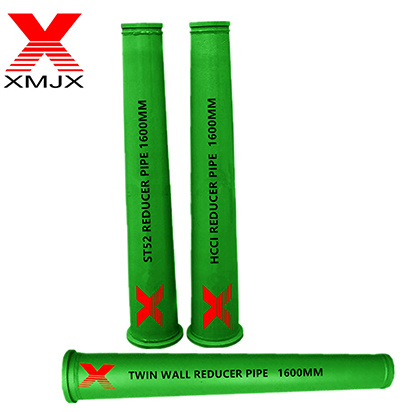

High quality concrete pump reducer pipes
| ST52REDUCERPIPE6"ZXMale-5"Metric1200MM(47.25In.) | ||||||||
| Specification | Structure | Material | ApproximatelyWallThickness(mm) | ShippingWeightlbs/kg | Manufactureprocess | Dimensiontolerance | Pressure | Weldtensilestrength |
| DN150-125×1200mm | Singlewall | ST52 | 8 | 81/36.8 | Pushed/Automaticwelding | <1mm<1° | 260bar | >890bar |
| HCCIREDUCERPIPE(Highchromiumcastironreducerpipe)6"ZXMale-5"Metric1200MM(47.25In.) | ||||||||
| Specification | Structure | Material | ApproximatelyWallThickness(mm) | ShippingWeightlbs/kg | Manufactureprocess | Dimensiontolerance | Pressure | Weldtensilestrength |
| DN150-125×1200mm | Singlewall | Highchromiumcastiron | 10 | 95.6/43.9 | Precisioncasting | <1mm<1° | 280bar | >890bar |
| Mn13-4REDUCERPIPE6"ZXMale-5"Metric1200MM(47.25In.) | ||||||||
| Specification | Structure | Material | ApproximatelyWallThickness(mm) | ShippingWeightlbs/kg | Manufactureprocess | Dimensiontolerance | Pressure | Weldtensilestrength |
| DN150-125×1200 | Singlewall | Mn13-4 | 10 | 95.6/43.9 | Precisioncasting | <1mm<1° | 280bar | >890bar |
| TWINWALLREDUCERPIPE6"ZXMale-5"Metric1200MM(47.25In.) | ||||||||
| Specification | Structure | Material | ApproximatelyWallThickness(mm) | ShippingWeightlbs/kg | Manufactureprocess | Dimensiontolerance | Pressure | Weldtensilestrength |
| DN150-125×1200 | Twinwall | chromiumcastiron×6.0mm/ST52×4.0mm | 10 | 90/40.9 | UHFquenching(400KHz) | <1mm<1° | 200bar | >650bar |
Our service………………………………………………………………………………………………………
High Quality:ISO9001, CE, CO certifications etc. All components adopt the qualified materials.100% quality check and durable testing for every product before shipment.
Competitive Price
Large scale production and well trained workers reduce cost greatly,Ximai use the Bottom Price to make you become the most competitive seller in your region.One-Stop Shopping
Our major is concrete pump pipe and forged coupling, we also have several partners,supplying related products so that can meet customers’ needs.Short Lead Time
We have power production capacity, produce 1500 sets couplings and 500pcs pipes every day.We can have your urgent orders ready in short time.Standard export package
Our package is in conformity with export requirements.We ensure it’s very safe and firm in the course of shipping.Customer Service
Top sales with professional skills make you never feel difficult to communicate with a factory,all Ximaistaff will stand by you, reply your inquiry and solve your problem, no matter pre-sales or after-sales.
Production display……………………………………………………………………………………….
Product process…………………………………………………………………………………………..
Product test……………………………………………………………………………………………………………………………………….
Quality assurance: We hereby confirm to undertake all the losses which caused by our product quality.

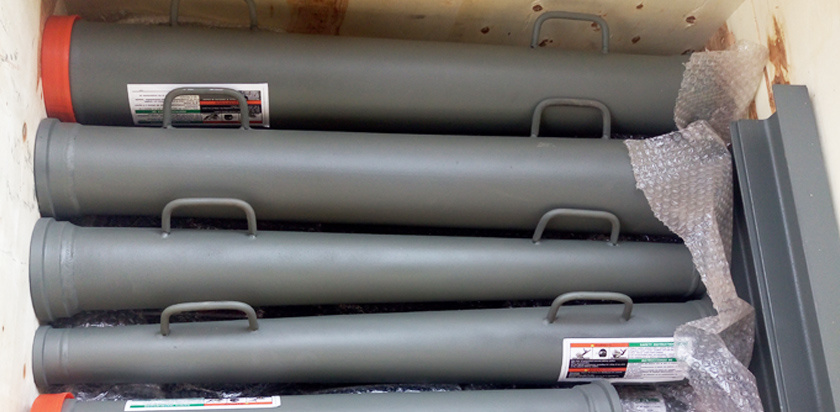

Packaging&Shipping……………………………………………………………………………………………………………………………….
Contact us……………………………………………………………………………………………………………………………………………..
FAQ……………………………………………………………………………………………………………………………………………………………….
Q: Are you trading company or manufacturer ?
A: We are a factory.
Q: How long is your delivery time?
A: Generally it is 5-10 days if the goods are in stock. or it is 15-20 days if the goods are not in stock, it is according to your quantity.
Q: Do you provide samples ? is it free or extra ?
A: Yes, we could offer the sample for free charge but the cost of freight by your side.
