DN 125 Concrete Pump Bend Elbow for Concrete Pump Truck

Short Description:

Port: Tianjin, China

Production Capacity: 500PCS/Per Day
Payment Terms: L/C, T/T, D/P, Western Union, Paypal, Money Gram
Type: Elbow
Application: Concrete Pump
Certification: CE, ISO9001: 2000
Condition: New
Length Deviation: <+-1mm
Angular Deviation: <1 Degree


Product Detail

Product Tags

Basic Info

Hardeness
up to 68HRC

Structure
Compound Structure

Material
20# St52 Mn13-4 70mn Gx350

Damping Layer
Polymer Damping Layer

Thickness(Back Arc+Arc)
>13+8mm

Hardened Process
UHF Quenching (400kHz)

Theoretical Weight(Lbs/Kg)
20/9.1

Flange Tape
Sk148 HD157 Zx175 FM175

Weld Tensile Strength
>580bar

Test Pressure
160bar

Color
Red Black White or Customized

Surface Coating
Baking Paint

Manufacture Process
Pushed/Quenched/Automatic Welding

Trademark
Ximai

Transport Package
Standard Export Package

Specification
DN125 R275 45 degree

Origin
China

HS Code
841391

Product description…………………………………………………………………………………………………………………………………….

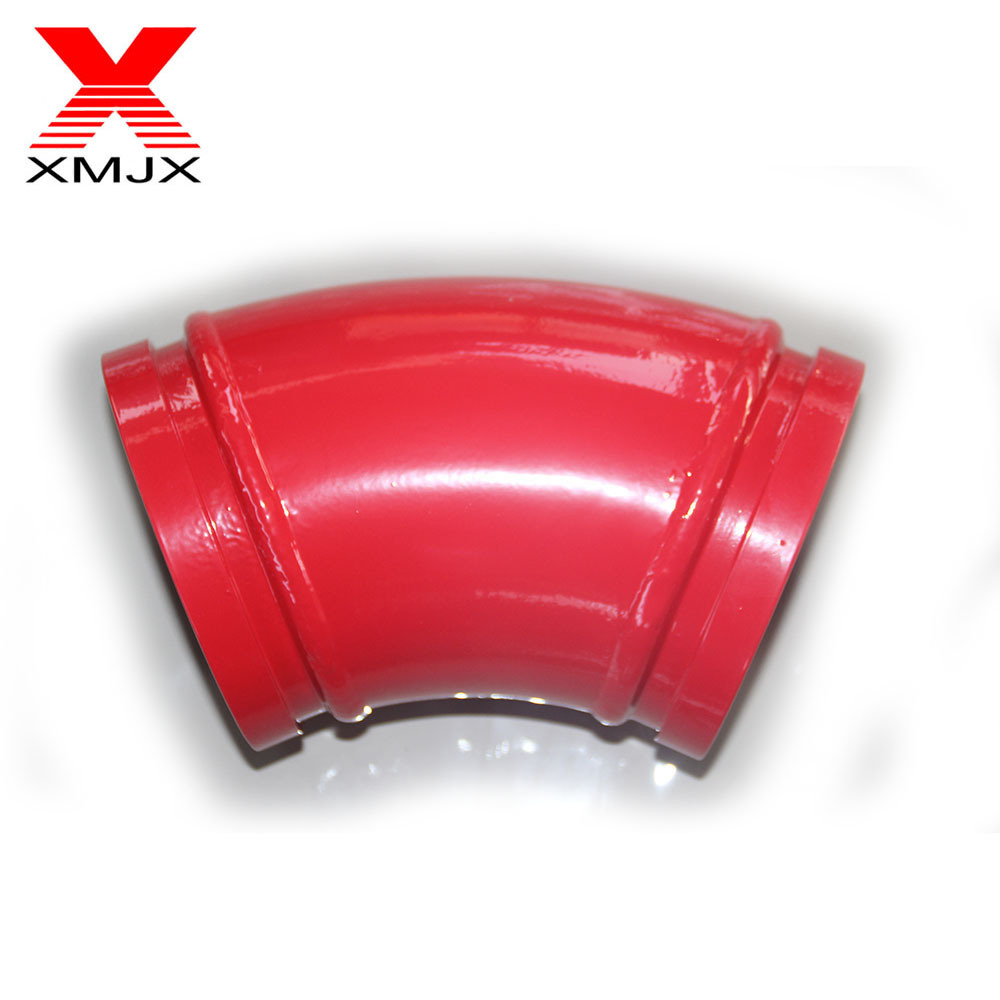

High quality twin wall elbow
TWIN WALL ELBOW DN125 R275 45°
CAST CHROME CARBIDE LINER+POLYMER DAMPING LAYER+ST52 SHELL
Part Number Specification Weightlbs/kgs Liner Hardness Dimension Tolerance Pressure Weld tensile strength Surface coating
TWBE527545 DN125 R275 45° 18.3/8.3 Up to 62-65HRC <1mm< 160bar >580bar Baking paint
TWDE527545 DN125 R275 45° 20/9.1 Up to 62-65HRC <1mm< 160bar >580bar Baking paint
All boom elbows and deck elbow for PM, SCHWING, CIAF, JUNJIN,KCP etc are available

Advantages

The twin-layer structure ensures high abrasion resistance and toughness

Chromium alloy iron casting enables the liner highly wear proof and reduce pressure

Seamless welding enables the the outer layerhard to explode

Light weight improves vehicle efficiency, highly reduces labor and cost and the time for replacement

Designed structure, material and process realize its 3-5 times service life of common products

to extend the service life of other pipe fitting

Easy to use and handle

Our service………………………………………………………………………………………………………………………………………..

High Quality:ISO9001, CE, CO certifications etc. All components adopt the qualified materials.100% quality check and durable testing for every product before shipment.
Competitive Price
Large scale production and well trained workers reduce cost greatly,Ximai use the Bottom Price to make you become the most competitive seller in your region.One-Stop Shopping
Our major is concrete pump pipe and forged coupling, we also have several partners,supplying related products so that can meet customers’ needs.Short Lead Time
We have power production capacity, produce 1500 sets couplings and 500pcs pipes every day.We can have your urgent orders ready in short time.Standard export package
Our package is in conformity with export requirements.We ensure it’s very safe and firm in the course of shipping.Customer Service
Top sales with professional skills make you never feel difficult to communicate with a factory,all Ximaistaff will stand by you, reply your inquiry and solve your problem, no matter pre-sales or after-sales.

Production display………………………………………………………………………………………………………………………….DN 125 Concrete Pump Bend Elbow for Concrete Pump TruckDN 125 Concrete Pump Bend Elbow for Concrete Pump TruckDN 125 Concrete Pump Bend Elbow for Concrete Pump TruckProduct process…………………………………………………………………………………………………………………………………………

DN 125 Concrete Pump Bend Elbow for Concrete Pump TruckProduct test……………………………………………………………………………………………………………………………………….DN 125 Concrete Pump Bend Elbow for Concrete Pump TruckPackaging&Shipping……………………………………………………………………………………………………………………………….DN 125 Concrete Pump Bend Elbow for Concrete Pump TruckDN 125 Concrete Pump Bend Elbow for Concrete Pump TruckDN 125 Concrete Pump Bend Elbow for Concrete Pump TruckContact us……………………………………………………………………………………………………………………………………………..DN 125 Concrete Pump Bend Elbow for Concrete Pump TruckDN 125 Concrete Pump Bend Elbow for Concrete Pump TruckFAQ……………………………………………………………………………………………………………………………………………………………….

Q: Are you trading company or manufacturer ?

A: We are a factory.

Q: How long is your delivery time?

A: Generally it is 5-10 days if the goods are in stock. or it is 15-20 days if the goods are not in stock, it is according to your quantity.

Q: Do you provide samples ? is it free or extra ?

A: Yes, we could offer the sample for free charge but the cost of freight by your side.
