Construction Machinery Pump Parts Concrete Pump Pipe
Basic Info
Model NO.
DN125 -5″
Length(mm)
1000~6000 or Customized
Flange Tape
Sk, HD, Zx, FM Flange Ends
Test Pressure
250bar
Surface Coating
Baking Paint
Length Deviation
+-1mm
Theoretical Weight(Lbs/Kg)
35/15.8
Weld Tensile Strength
>480bar
Color
Red Black White or Customized
Trademark
Ximai
Transport Package
Standard Export Package
Specification
M55 LINE PUMP PIPE DN125 -5″
Origin
China

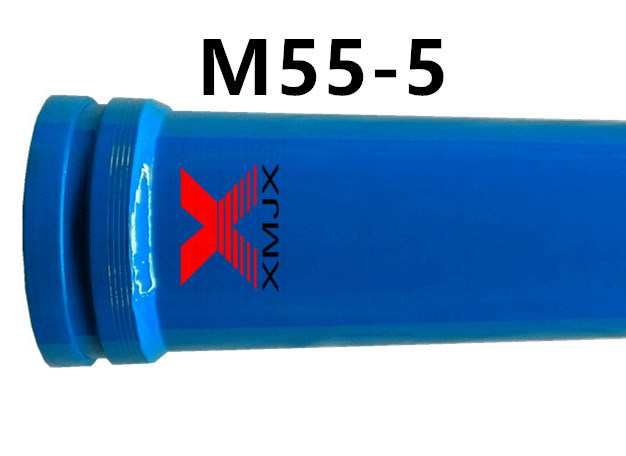

| M55-5 | ||||||
| PRODUCT FEATURES | ||||||
| M55 LINE PUMP PIPE DN125 -5″ | With SK, HD, ZX, FM Flange Ends | |||||
| Part Number | Thickness(mm) | Theoretical weight(lbs./kg.)/meter | LengthDeviation | TestPressure | WeldTensileStrength | SurfaceCoating |
| M55-540 | 4.0 | 28/12.7 | ±1mm | 160bar | >480bar | Painting |
| M55-545 | 4.5 | 31.5/14.3 | ±1mm | 180bar | >480bar | Painting |
| M55-550 | 5.0 | 35/15.8 | ±1mm | 250bar | >480bar | Painting |
| M55-560 | 6.0 | 44/19.8 | ±1mm | 280bar | >480bar | Painting |
| M55-565 | 6.5 | 47/21.4 | ±1mm | 280bar | >480bar | Painting |
| M55-571 | 7.1 | 51/23.3 | ±1mm | 360bar | >480bar | Painting |
| M55-591 | 9.1 | 65/29.4 | ±1mm | 360bar | >480bar | Painting |
| M55-5100 | 10.0 | 70/32 | ±1mm | 360bar | >480bar | Painting |
| M55-5120 | 12.0 | 84/38 | ±1mm | 360bar | - | Primer |
| Length=1000mmLength=2000mmLength=3000mmLength=3048mm(Length=120 inch, Length=10 feet)Length=4500mmLength=6000mm……..Any length and thickness can be customized. | ||||||
| Any types of weld ends are available.METRIC (SK) WELD ENDSHEAVY DUTY WELD ENDSSCHWING F/M WELD ENDSPUTZMEISTER Z/X WELD ENDS | ||||||

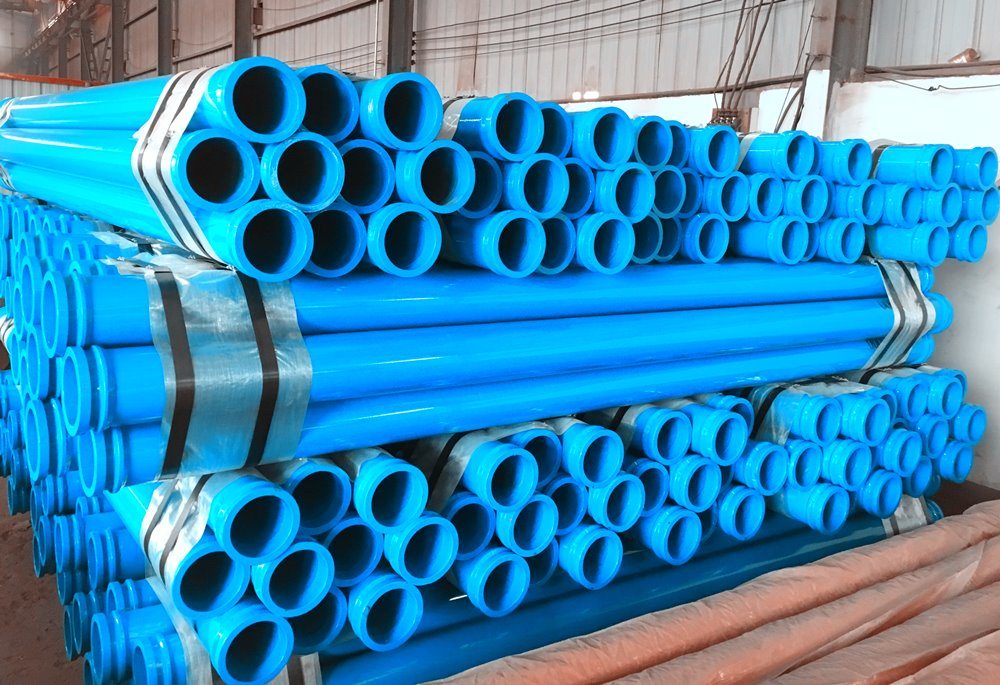

1.We are a professional manufacturer of concrete pump pipes in China.Our products include concrete delivery pipes,elbows,reducers,couplings,rubber hoses,cleaning ball and so on.2.Our products are top quality in china which have been used on SCHWING ,PM ,KYOKUTO ,SANY ,ZOOMLION ,CIFA,SINOTRUK(CNHTC),FOTON,XUGONG,CHUTIAN,HAINUO etc and have been recognized by them.3.The HRC of it’s inner wall can reach 60~68 and the serving life of it can increase 3~5 times.4.It is quenched and carried out carburizing chemical treatment on the inner wall.It has a high wear-resistant.5.OEM available from us.
