2020 Hot Sale DN125 Concrete Pump Twin Wall Pipe Time

Short Description:

Port: Tianjin, China

Production Capacity: 500PCS/Per Day
Payment Terms: L/C, T/T, D/P, Western Union, Paypal, Money Gram
Type: Pipe
Application: Concrete Pump
Certification: CE, ISO9001: 2000
Condition: New
Material: 20# St52 16mn 37mn5 55mn Nm900
Thickness: 8.1mm


Product Detail

Product Tags

Basic Info

Model NO.
DN125 8.1mm

Wall Thinkness(Shell+Inner)
3.0+5.1mm

Length Deviation
+-1mm

Length(in/mm)
118.12/3000 or Customized

Hardeness
up to 68HRC

Hardened Process
UHF Quenching (400kHz)

Theoretical Weight(Lbs/Kg)
101/46

Flange Tape
Sk148 HD157 Zx175 FM175

Weld Tensile Strength
>480bar

Test Pressure
170bar

Color
Red Black White or Customized

Surface Coating
Baking Paint

Trademark
Ximai

Transport Package
Standard Export Package

Specification
DN125/5"

Origin
China

HS Code
841391

Product description
High quality twin wall concrete pump pipes

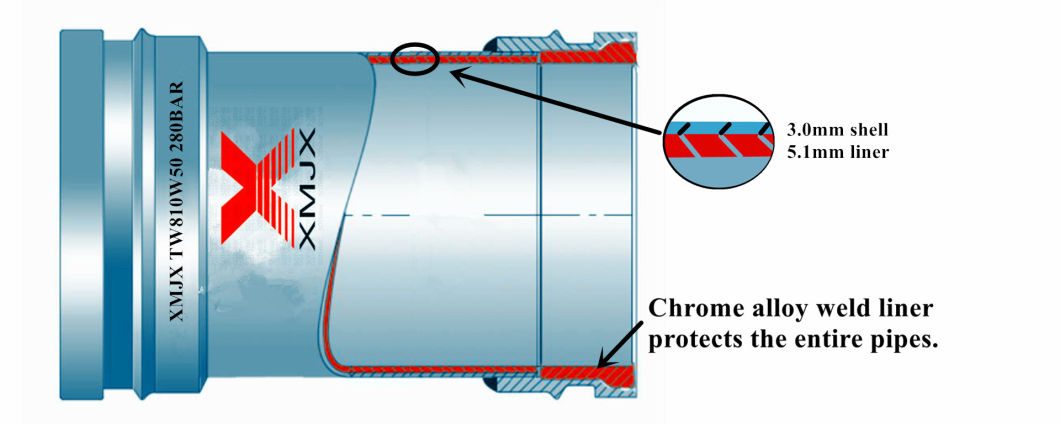

TWIN WALL DECK PIPE DN125 8.1mm (5.1m + 3.0mm) with 148mm chrome alloy liner weld ends
Part Number Length(in/mm) Theoretical weight(lbs./kg.) HardenedProcess HardnessHRC LengthDeviation TestPressure WeldTensileStrength SurfaceCoating
TW810W50L1M 39.37/1000 57/26 UHF Quenching(400KHz) UP to 68 ±1mm 280bar >480bar Baking paint
TW810W50L2M 78.75/2000 117/53 UHF Quenching(400KHz) UP to 68 ±1mm 280bar >480bar Baking paint
TW810W50L3M 118.12/3000 172/78 UHF Quenching(400KHz) UP to 68 ±1mm 280bar >480bar Baking paint
TW810W50L4M 157.48/4000 230/104 UHF Quenching(400KHz) UP to 68 ±1mm 280bar >480bar Baking paint
TW810W50L6M 236.22/6000 344/156 UHF Quenching(400KHz) UP to 68 ±1mm 280bar - Primer
Any length can be customized,please consult us.

1.We are a professional manufacturer of concrete pump pipes in China.Our products include delivery pipes,elbows,reducers,couplings,rubber hoses,cleaning ball and so on.

2.Our products are top quality in china which have been used on SCHWING ,PM ,KYOKUTO ,SANY ,ZOOMLION ,CIFA,SINOTRUK(CNHTC),FOTON,XUGONG,CHUTIAN,HAINUO etc and have been recognized by them.

3.The HRC of it’s inner wall can reach 60~68 degrees and the serving life of it can increase 3~5 times.

4.It is quenched and carried out carburizing chemical treatment on the inner wall.It has a high wear-resistant.

5.OEM available from us.Production display2020 Hot Sale DN125 Concrete Pump Twin Wall Pipe Time2020 Hot Sale DN125 Concrete Pump Twin Wall Pipe Time2020 Hot Sale DN125 Concrete Pump Twin Wall Pipe Time

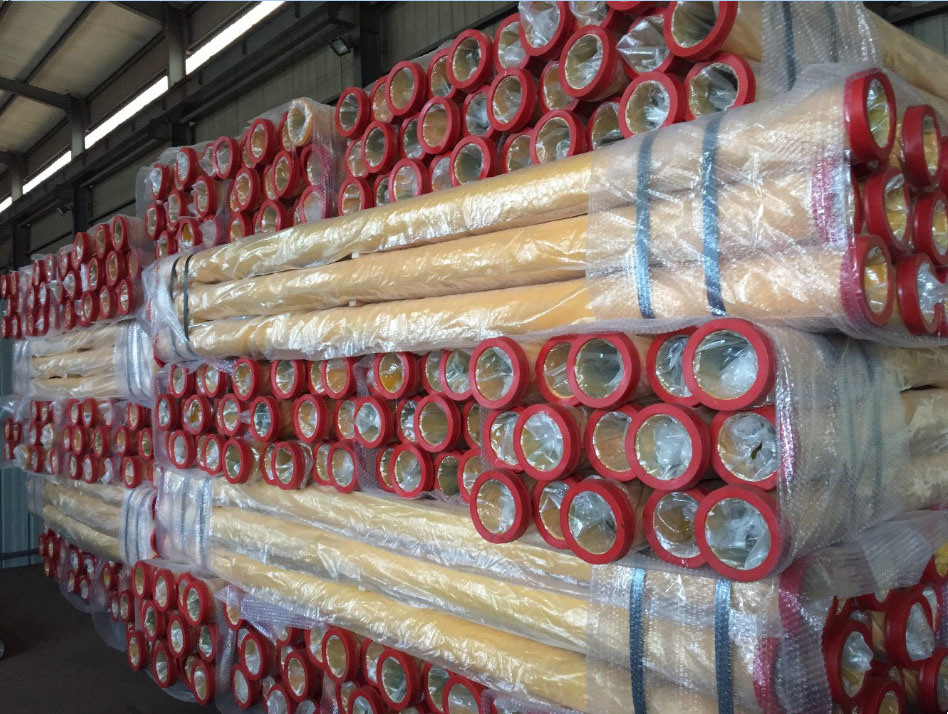

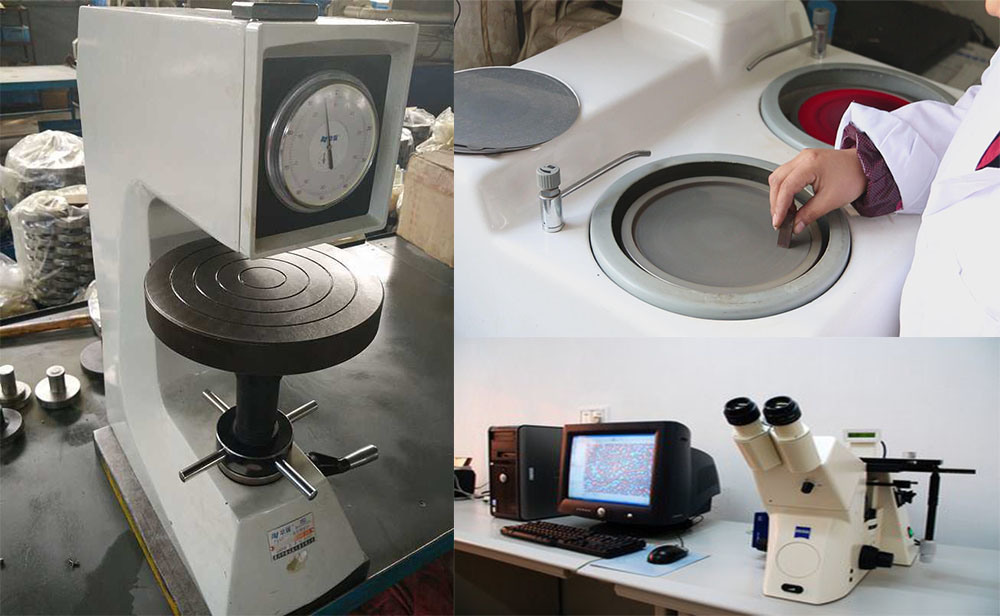

Product process 2020 Hot Sale DN125 Concrete Pump Twin Wall Pipe TimeProduct test2020 Hot Sale DN125 Concrete Pump Twin Wall Pipe TimePackaging&Shipping2020 Hot Sale DN125 Concrete Pump Twin Wall Pipe Time2020 Hot Sale DN125 Concrete Pump Twin Wall Pipe TimeContact us 2020 Hot Sale DN125 Concrete Pump Twin Wall Pipe Time
