Factory source Adapter - High Pressure Concrete Pouring Flexible Rubber Hose Pipe – Ximai Detail:

Basic Info

Burst Pressure

220bar

Wire Braid Hose Size

2"-5"

Ply

4-Ply Wire Braided etc

Life

15000-20000 Cbm

Length

3–10m or Other Length

Color

as Clients′s Required

Material

Natural Rubber and Steel Wire

Trademark

Ximai

Transport Package

Standard Export Package

Specification

5"X85bar 4-layer wire 148mmSk

Origin

China

HS Code

841391

Product description………………………………………………………………………………………

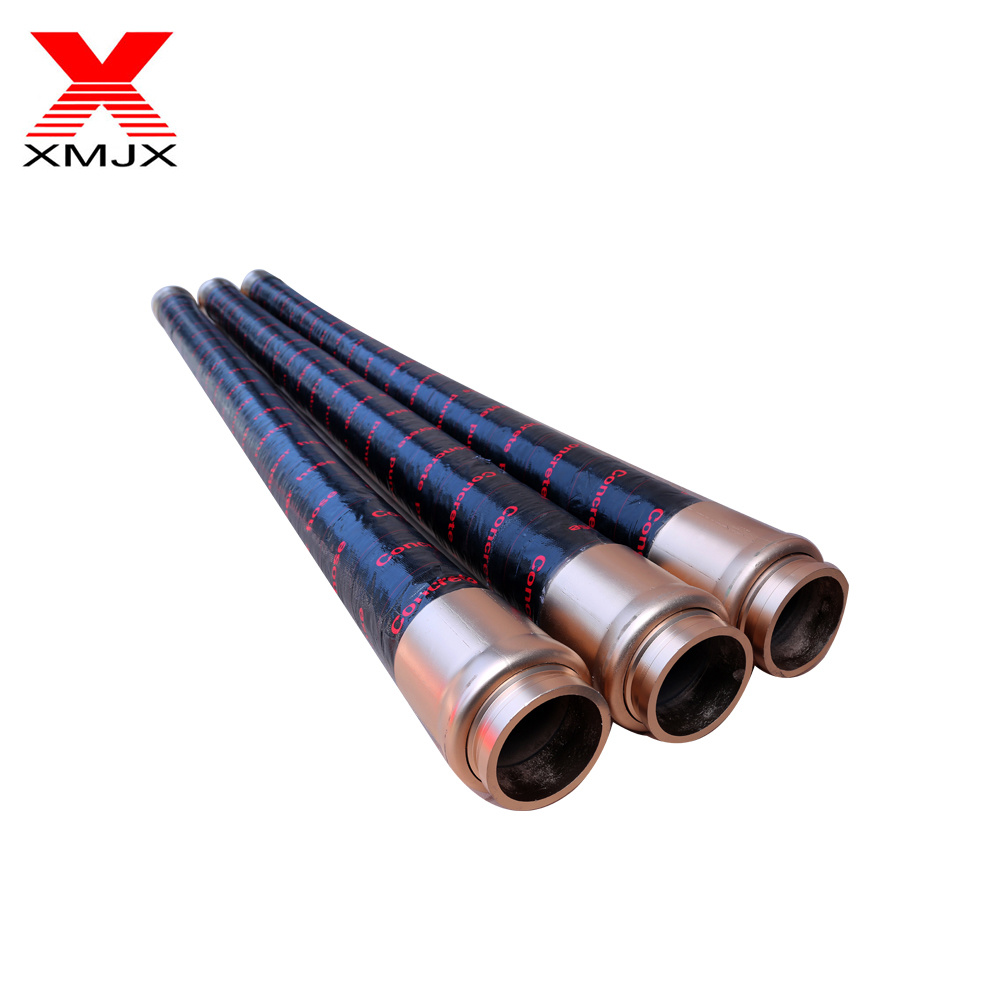

High quality rubber hose

Specifications

Size	InnerDiameter	WallThicknessTolerance	OuterDiameter	WorkingPressure	BurstiongPressure	BendRadius	Weight
2"	50.0mm	9.0±0.75mm	68±1.50mm	85bar	240bar	200mm	2.60kg/m
2.5"	64.0mm	10.0±0.75mm	85±1.50mm	85bar	240bar	250mm	4.30kg/m
3"	76.2mm	12.9±1.00mm	102±1.50mm	85bar	240bar	270mm	6.10kg/m
3.5"	89.0mm	13.5±1.00mm	116±1.50mm	85bar	240bar	290mm	8.00kg/m
4"	101.6mm	14.2±1.00mm	130±1.75mm	85bar	240bar	300mm	9.00kg/m
4.5"	115.0mm	14.0±1.00mm	143±2.00mm	85bar	240bar	320mm	10.20kg/m
5"	127.0mm	16.0±1.00mm	158±2.00mm	85bar	240bar	360mm	12.50kg/m
6"	150.0mm	18.0±1.00mm	168±2.00mm	85bar	240bar	570mm	14.85kg/m

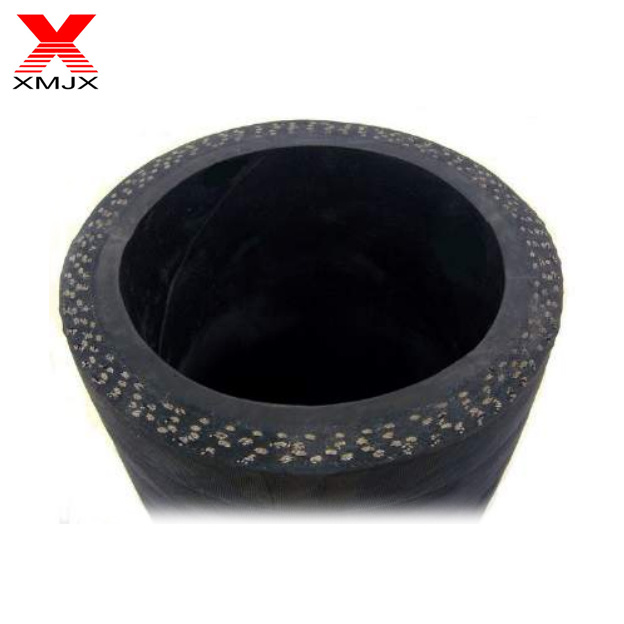

1.application:used for high-rise buildings, highway, tunnel, water conservancy project , nuclear powerstation and so on construction machinery , concrete pump delivery concrete.2. product structure: inner layer rubber, enhancement layer, outside layer rubber(1) inner layer rubber:polyurethane and butyl rubber are the mainly material, and put in specialreinforced material to make mixed rubber .its colour is black and transparent. With high wearresistance, high toughness, high pressure, smooth, and so on.The friction resistance of concrete Wipe,tube has the pressure transmission mmedium, wire protection from erosion effect.(2) enhancement layer:4 layer of steel wire wound, the use of copper wire braided hose,bearing the work pressure is the ordinary hose 3-4 Times, with a high degree of resistance, flexfeatures superior performance, enhancing effect.(3) outside layer rubber:Black, smooth (wrapped), SBR/NR compound, anti aging, wear resistance.[material ] natural rubber and steel wireOur service……………………………………………………………………………………………………..

High Quality:ISO9001, CE, CO certifications etc. All components adopt the qualified materials.100% quality check and durable testing for every product before shipment.

Competitive Price

Large scale production and well trained workers reduce cost greatly,Ximai use the Bottom Price to make you become the most competitive seller in your region.One-Stop Shopping

Our major is concrete pump pipe and forged coupling, we also have several partners,supplying related products so that can meet customers’ needs.Short Lead Time

We have power production capacity, produce 1500 sets couplings and 500pcs pipes every day.We can have your urgent orders ready in short time.Standard export package

Our package is in conformity with export requirements.We ensure it’s very safe and firm in the course of shipping.Customer Service

Top sales with professional skills make you never feel difficult to communicate with a factory,all Ximaistaff will stand by you, reply your inquiry and solve your problem, no matter pre-sales or after-sales.
