China New Product Concrete Pump Truck - Putzmeister DN125 Concrete Pump Hardened Twin Wall Pipe – Ximai Detail:

Basic Info

Model NO.

DN125 8.1mm

Length Deviation

+-1mm

Length(in/mm)

118.12/3000 or Customized

Hardeness

up to 68HRC

Hardened Process

UHF Quenching (400kHz)

Theoretical Weight(Lbs/Kg)

101/46

Flange Tape

Sk148 HD157 Zx175 FM175

Weld Tensile Strength

>480bar

Test Pressure

170bar

Color

Red Black White or Customized

Surface Coating

Baking Paint

Trademark

Ximai

Transport Package

Standard Export Package

Specification

DN125/5"

Origin

China

HS Code

841391

Product description

High quality twin wall concrete pump pipes

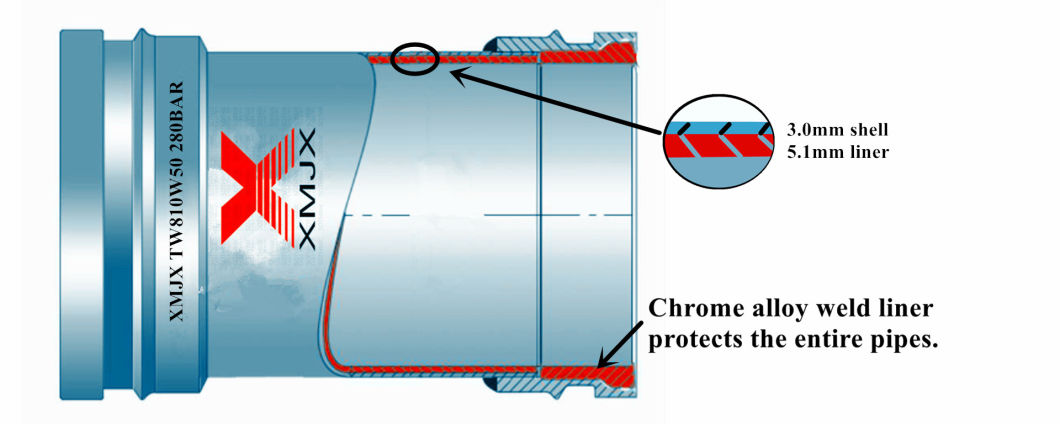

TWIN WALL DECK PIPE DN125 8.1mm (5.1m + 3.0mm)					with 148mm chrome alloy liner weld ends
Part Number	Length(in/mm)	Theoretical weight(lbs./kg.)	HardenedProcess	HardnessHRC	LengthDeviation	TestPressure	WeldTensileStrength	SurfaceCoating
TW810W50L1M	39.37/1000	57/26	UHF Quenching(400KHz)	UP to 68	±1mm	280bar	>480bar	Baking paint
TW810W50L2M	78.75/2000	117/53	UHF Quenching(400KHz)	UP to 68	±1mm	280bar	>480bar	Baking paint
TW810W50L3M	118.12/3000	172/78	UHF Quenching(400KHz)	UP to 68	±1mm	280bar	>480bar	Baking paint
TW810W50L4M	157.48/4000	230/104	UHF Quenching(400KHz)	UP to 68	±1mm	280bar	>480bar	Baking paint
TW810W50L6M	236.22/6000	344/156	UHF Quenching(400KHz)	UP to 68	±1mm	280bar	-	Primer
Any length can be customized,please consult us.

1.We are a professional manufacturer of concrete pump pipes in China.Our products include delivery pipes,elbows,reducers,couplings,rubber hoses,cleaning ball and so on.

2.Our products are top quality in china which have been used on SCHWING ,PM ,KYOKUTO ,SANY ,ZOOMLION ,CIFA,SINOTRUK(CNHTC),FOTON,XUGONG,CHUTIAN,HAINUO etc and have been recognized by them.

3.The HRC of it’s inner wall can reach 60~68 degrees and the serving life of it can increase 3~5 times.

4.It is quenched and carried out carburizing chemical treatment on the inner wall.It has a high wear-resistant.

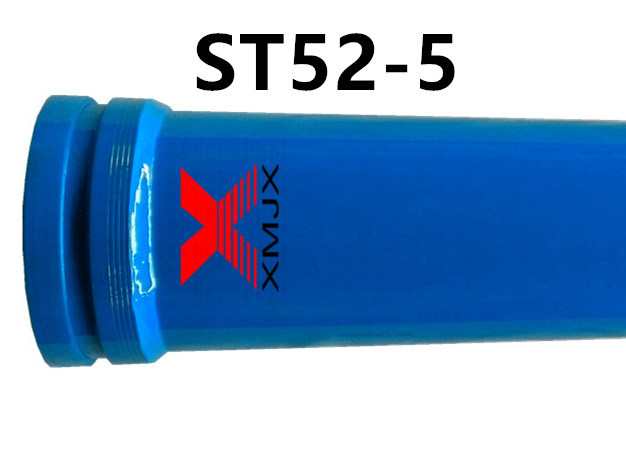

5.OEM available from us.Production display Putzmeister DN125 Concrete Pump Hardened Twin Wall Pipe

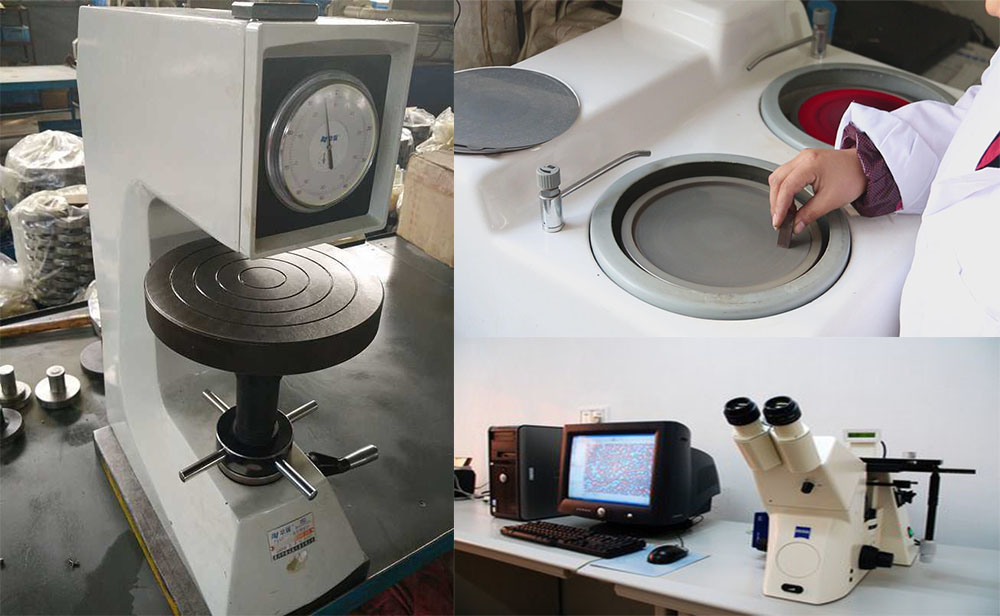

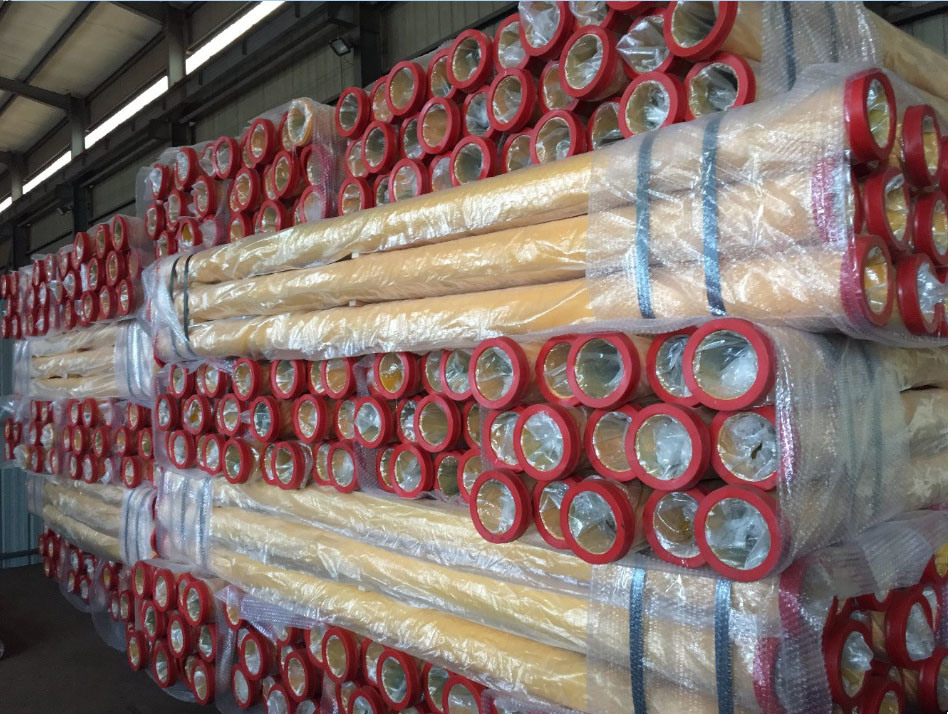

Product process Putzmeister DN125 Concrete Pump Hardened Twin Wall Pipe Product testPackaging&ShippingContact us
